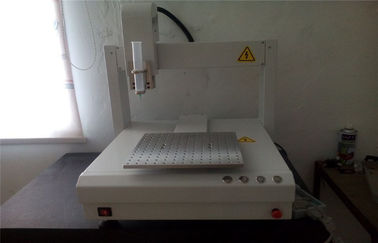

Conductive Adhesive / AB Glue / Epoxy Dispensing Machine For PCB Board / Speaker

Conductive Adhesive / AB Glue / Epoxy Dispensing Machine For PCB Board / Speaker
Conductive Adhesive / AB Glue / Epoxy Dispensing Machine For PCB Board / Speaker

Large Image :  Conductive Adhesive / AB Glue / Epoxy Dispensing Machine For PCB Board / Speaker

Product Details:
Place of Origin: China
Brand Name: VISION
Certification: ROHSSGS
Model Number: VS-200
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 6350USD
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: western Union or paypal or bank transfer
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: OEM VS-200 3 Axis 3D Dispensing Robot Application: Glue/epoxy/resin
Weight: 45kg Dispensing Size: 200*200*100mm
Type: VS-200 Motor System: High Precision Motor
Standard: ROHS/SGS Display: LCD Teach Box
High Light:

glue dispensing robot

,

epoxy dispensing machine

OEM VS-200 3 axis  3D dispensing robot

Specifications:



1. The software has the area array, rotation of translation, and other functions. The program file can be through the U disk to upload/download, convenient data management, and save.
2 glue quantity size thickness, coating speed, dispensing time, stop time all can set parameters, the glue quantity is stable, not LouDi glue;
3. According to the process need, can be mounted to the workbench positioning PIN, glue gun or floor heating temperature control device
4. Apply fluid dispensing, for example: the UV glue, AB glue, EPOXY (vinyl), white glue, EMI conductive adhesive, SILICON, EPOXY resin, instant glue, silver glue, red glue, solder paste, cooling paste, solder paste, clear lacquer, screws, etc
6. Suitable for object: mobile phone, computer case, CD machine, printer, and ink holder, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiator, semiconductor, electronics, or with SMT equipment attachment quick point/glue, clock, toys, medical equipment and other liquid dispensing products.



model VS-200
Working Range X/Y/Z (mm):  200/200/50
Load Y-AXIS / Z-AXIS:  5 / 3 kgs
X&Y / Z ( mm/sec ): 0.1-500/250
Resolution: 0.001 mm/Axis
Repetitive Positioning Accuracy: 0.01 mm/ Axis
Program Capacity:  At least 100 groups, each group 4000 points
Data Storage Type:  CF Card
Program Display:  Teach Pendant LCD
Motor System:  Micro-step precision motor
Control Method: PTP & CP
Interpolation Function:  3 axis ( 3D stereo space arbitrary paths can)
Programming Method:  Teaching box / PC
I/O Signals Port:  8 / 8 Outputs Inputs
External Control Interface:  RS232
Power Supply:  AC110 220V 300W
Working Temperature:  10 - 40 C
Working Relative Humidity:  20 - 90% no condensation
Dimensions (WxDxH mm):  380X370X500
Robot Weight (kg):  23kgs





Competitive Advantage:



(1) 6-year dispensing robot Manufacture Experience

(2) Quick and Safe Delivery

(3) Professional Service Team

(4) 24 hours On Line Customer Service

(5) OEM and ODM Services offered.





use for



Dispensing robots widely used in the industrial production, such as PCB Board,speaker,MP3,MP4,LCD Display,integrated circuits, printed circuit boards, electronic components, automotive parts, handbag, packing box etc.

Glue robot is suitable glue:UV glue,Silicone ,epoxy,red glue,AB glue,COB black glue, Conductive adhesive and so on
