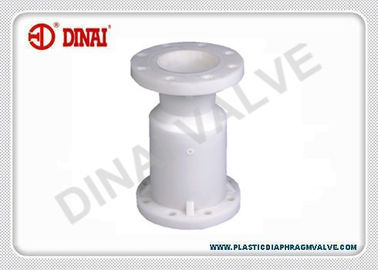

PP/FRPP ball check Valve Flange Connection 1/2"~12" Vertical Install DIN/ANSI/JIS

PP/FRPP ball check Valve Flange Connection 1/2"~12" Vertical Install DIN/ANSI/JIS
PP/FRPP ball check Valve Flange Connection 1/2"~12" Vertical Install DIN/ANSI/JIS

Large Image :  PP/FRPP ball check Valve Flange Connection 1/2"~12" Vertical Install DIN/ANSI/JIS

Product Details:
Place of Origin: China
Brand Name: DINAI
Certification: ISO
Model Number: H41F-10F
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Price: ¥364-¥31686
Packaging Details: Wooden Case
Delivery Time: 7-15 Days
Payment Terms: T/T; L/C
Supply Ability: 1000~2000 Sets/Month
Detailed Product Description
Material: PVDF Color: Transparent
Size: DN15-DN300
High Light:

PVC check valve

,

PVDF check valve

Plastic Check Valves PVDF Plastic Ball Type Check Valve H41F-10F , DN15-DN300







Specifications:



Norminal size

D1

D2

L

T

n

Φ

JIS

DIN

ANSI

1/2"(D20mm)

70

65

60

105

120

18

4

14

3/4"(D25mm)

75

75

70

105

120

18

4

14

1"(D32mm)

90

85

80

116

140

18

4

14

1-1/4"(D40mm)

100

100

89

135

145

19

4

18

1-1/2"(D50mm)

105

110

100

145

165

19

4

18

2"(D63mm)

120

125

120

160

190

20

4

18

2-1/2"(D75mm)

140

145

140

180

220

20

4

18

3"(D90mm)

150

160

152

195

242

22

8

18

4"(D110mm)

175

180

190

215

280

24

8

18

5"(D140mm)

210

210

216

245

360

30

8

18

6"(D160mm)

240

240

240

280

400

30

8

23

8"(D225mm)

290

295

298

337

403

35

8

23

10”(D280)

355

350

362

390

500

40

12

23

12”(D315mm)

445

400

432

435

500

40

12

23



FRPP ball check valve specification

Working pressure

1.0Mpa

Working pressure

-14℃~80℃

Standard

DIN/ANSI/JIS/BS

1

Ball

FRPP

2

Body

FRPP





PP/FRPP ball check Valve Flange Connection 1/2"~12" Vertical Install DIN/ANSI/JIS 0



PP/FRPP ball check Valve Flange Connection 1/2"~12" Vertical Install DIN/ANSI/JIS 1

PP/FRPP ball check Valve Flange Connection 1/2"~12" Vertical Install DIN/ANSI/JIS 2
