Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel 316L | Type: | Back Flushing Filter |
---|---|---|---|
Filtering Ability: | 50 Micron -1000micron | Size: | According To The Reqests Of Clients |
Application: | Heat Exchangers & Sensitive Process | ||
High Light: | self cleaning water filter,automatic self cleaning filter |
Self Cleaning Water Filter Equipment With 40 Micron Wedge Wire Screen Strainer
Item code: SF-05
Brief introduction

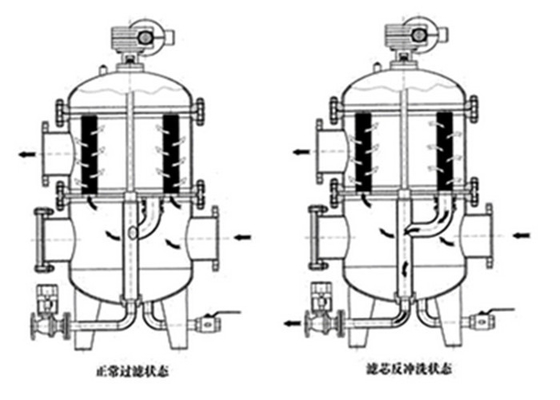

Self Cleaning Filter For Heat Exchangers & Sensitive Process Equipment With High Quality Slot Tubes use wedge wire screen filter element. It is the core component for self cleaning Filter.
Specifications for Wedge Wire Screen
Wedge wire screen is a high precision screening filter for the structural elements of the metal mesh. The filtrition rate is 40microns. More widely used in industry screening, filtration, dehydration, and other operating Desliming. It has high strength, stiffness and load-bearing capacity, can make various shapes of the rigid screening filter.Wedge wire screen is also called slot tube, Johnson screen, Looped screen.
Profile Wire | W | H | |
10SR | 0.75 | 1.425 | |
12SR | 1 | 2 | √ |
18SR | 1.52 | 2.54 | |
Support Rod | W | H | |
Q22 | 2 | 2.3 | |
Q25 | 2 | 3 | √ |
Technical data for more available OD and filtering rate.
|
(mm)TYPE |
OD |
ID |
Support wire Number |
Filter direction |
1 |
SRD25.4 |
25.4 |
18.6 |
12 |
FOTI |
2 |
SRD 33 |
33 |
24 |
8 |
FOTI |
3 |
SRD 37 |
37 |
28 |
8 |
FOTI |
4 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
5 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
6 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
7 |
SRD 60 |
60 |
51 |
12 |
FOTI/FITO |
8 |
SRD 70 |
70 |
61 |
12/18 |
FOTI/FITO |
9 |
SRD 85 |
85 |
76 |
18 |
FOTI/FITO |
10 |
SRD 110 |
110 |
101 |
24 |
FOTI/FITO |
11 |
SRD120 |
120 |
111 |
24 |
FOTI/FITO |
Remarks:
1. Make high precision wedge wire screen with different material according to user requirements.
2. high precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.
