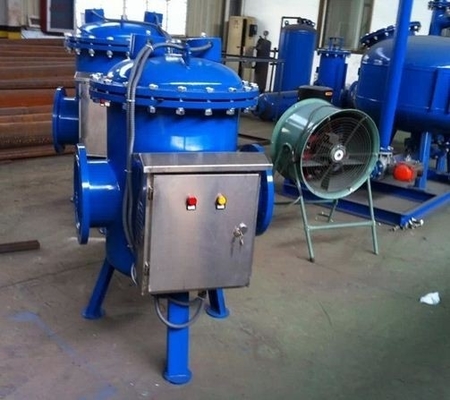

Stainless Steel Self Cleaning Water Filter For Petro-Chemical , 25 - 3000um

Stainless Steel Self Cleaning Water Filter For Petro-Chemical , 25 - 3000um
Stainless Steel Self Cleaning Water Filter For Petro-Chemical , 25 - 3000um Stainless Steel Self Cleaning Water Filter For Petro-Chemical , 25 - 3000um

Large Image :  Stainless Steel Self Cleaning Water Filter For Petro-Chemical , 25 - 3000um

Product Details:
Place of Origin: Zhejiang, China
Brand Name: JCD WATER
Certification: ISO 9000
Model Number: SCW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 10000 sets/month
Detailed Product Description
Applicable Industry: Oils And Fats, Water Treatment Applicable Liquids: Wax, Kerosene, Monomer, Polymer
Filtration Ratings: 50μm To 500 μm Filtrationg Ratings: 25-3000um
Material: 304,316L,CS Viscosity: 1-800000
High Light:

self cleaning water filters

,

commercial water filters

Stainless Steel Self Cleaning Water Filter For Petro-Chemical , 25 - 3000um





Specifications



Mechanical Scraping Self-cleaning Filter
1.Material: 304,316L,CS
2.Filtrationg Ratings: 25-3000um
3.Viscosity:1-800000



Mechanical External Scraping Self-cleaning Filter | CS+Coating Housing

This series self-cleaning filter (this Filter for short), is the high efficiency scraping self-cleaning filter independently developed by JCD. Removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. DFX filter is designed for fine and accurate filtration ranging from 50-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids of viscosity up to 800000cps. DFX filter is designed and manufactured per our high performance, high quality and high reliability standard. It is a world-class quality filter.

JCD is the world leading self-cleaning filter manufacturer with its complete series scraping self-cleaning filters, which has three sub-series: DFX series, motor-driven external scraping; DFA pneumatic-driven internal scraping; DFM motor-driven internal scraping. They are good at different applcations and meet the various mechanical self-cleaning needs.





Working Principle



The liquid enters the filter from the inlet(1), flows through the filter element(6) from outside to inside. The filter element bottom is connected to the outlet (2), through which the liquid flows out. After the filter element captures the impurities, the cleaning action is trigger by the preset time or differential pressure value. The gear motor(4) drives the scraping blades(7) to rotate and remove the impurities on the filter element outside surface. The impurities moves off along the blades and falls down to the filter bottom. The rotating plates push the gravity impurities into the collection chamber(5). The impurities are collected at the filter bottom and in the collection chamber. The discharging valve open per the preset time and discharging the waste liquid with high impurity concentration through the drain outlet(3), the purged liquid can be reclaimed if necessary.





Specifications



Mechanical Scraping Self-cleaning Filter
1.Material: 304,316L,CS
2.Filtrationg Ratings: 25-3000um
3.Viscosity:1-800000

Mechanical External Scraping Self-cleaning Filter | CS+Coating Housing

This series self-cleaning filter (DFX Filter for short), is the high efficiency scraping self-cleaning filter independently developed by JCD. Removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. DFX filter is designed for fine and accurate filtration ranging from 50-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids of viscosity up to 800000cps. DFX filter is designed and manufactured per JCD 's high performance, high quality and high reliability standard. It is a world-class quality filter.

JCD is the world leading self-cleaning filter manufacturer with its complete series scraping self-cleaning filters, which has three sub-series: DFX series, motor-driven external scraping; DFA pneumatic-driven internal scraping; DFM motor-driven internal scraping. They are good at different applications and meet the various mechanical self-cleaning needs.





Working Principle



The liquid enters the filter from the inlet(1), flows through the filter element(6) from outside to inside. The filter element bottom is connected to the outlet

(2), through which the liquid flows out. After the filter element captures the impurities, the cleaning action is trigger by the preset time or differential pressure value. The gear motor(4) drives the scraping blades(7) to rotate and remove the impurities on the filter element outside surface. The impurities moves off along the blades and falls down to the filter bottom. The rotating plates push the gravity impurities into the collection chamber(5). The impurities are collected at the filter bottom and in the collection chamber. The discharging valve open per the preset time and discharging the waste liquid with high impurity concentration through the drain outlet(3), the purged liquid can be reclaimed if necessary.





Technical Features and Advantages



1. Automatic 24-hour on-line filtration, no frequent changing out and cleaning

2. No disposable filter media comsuption, save filter media cost and environment cost

3. Stainless steel scraping blade, good impurity removing performance

4.Top quality V-SLOT filter element, accurate slots, extreamly smooth, easy to scrap

5. Very low pressure drop, stable flowrate, save energy comsuption

6.back-flushing function can be added to help clean the filter element

7. Close filtration, no dangerout liquid leakage, good for safe production

8. Discharge waste liquid with high impurity concentration, avoid valuable liquid loss

9.Various modular combination and automation modes available, meet different filtration needs

10.Equiped with world-famous gear motor, high reliablity and long service life

11. Assitant lifting device , only one operator can open and close the filter cover

V-SLOT High Performance Precision Filter Element

1. Filtration ratings range from 50μm to 500 μm

2. Accurate slot width with deviation less than 5 μm

3. 316L screen material , excellent corrosion resistance

4.V Shape slot, rarely clogged, long time stable flowrate

5. Smooth outside surface, very easy to scrape clean and very low abrasion of the scraping balde

6. Capable of filtration of difficult impurities like oil mud, soft particles, etc..

7. Special surface harden treatment, greatly increase the service life

8. Heavy duty structure, no slot deformation when pressure drop rising

9. Suffer the high pressure from both forward and reverse direction



1. Applicable Industry: oils and fats, water treatment, pulp and paper, petro-chemical, fine chemical

2. Applicable liquids: wax, kerosene, monomer, polymer, citric acid, fermented broth, cosmetics, silicon solution, soap, sorbitol, steriodsugar, wet end additives, adhesives, inks, lubricating oil, coatings, resin, rubber, ethanol, miscella, diesel, etc.
