Type: | Gas Vane Separators | Operating Temperature: | Normal Temperature |
---|---|---|---|
Operating Pressure: | 0.1Mpa | Separate Efficiency: | 99.98% |
Installation: | Vertical | Application: | Removal Liquid From Natural Gas |
High Light: | dry gas filter,natural gas filter separator |

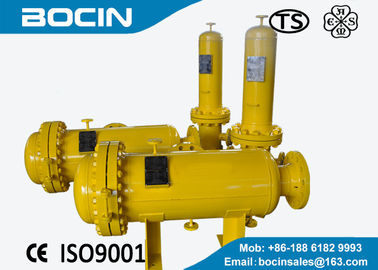

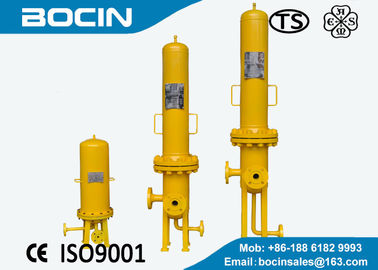

Vertical Gas vane separators Provide Liquid Removal From Natural Gas
Description:
UNITE gas vane separators use the principles of momentum, gravity and coalescing to deliver high-efficiency, high-capacity, and low-cost gas and liquid separation with low pressure drop and high turndown. Vane separators provide liquid removal with smaller vessels, which results in lower initial cost, space savings, and minimal maintenance requirements.
Features:
1. The gas and mist are forced to change direction many times through the blade
2. Larger droplets move more easily in a straight line
3. Captured droplets merge until they fall due to gravity
Main Technical Characteristics:
Shell material: Q345R |
Work flow: 2000Nm3/h |
Design pressure: 0.375 Mpa |
Design temperature: 60 °C |
Applied medium: Nature gas, hydrogen gas, artificial goal gas, liquefied petroleum gas and other non-corrosive gases |
Product standard: GB/T150.1~150.4-2011 |
Installation: Vertical |
Material of cartridge: vane separator |
Filtration efficiency: More than 99% |
