| TYPE: | Gas Filter | Operating Temperature: | -40~300℃ |
|---|---|---|---|
| Operating Pressure: | 0.1~40Mpa | Seperate Accuracy: | 0.1/1/2/3/5/10um |
| Separate Efficiency: | 99.98% | Installation: | Vertical |
| High Light: | natural gas filter separator,gas liquid separator |
||

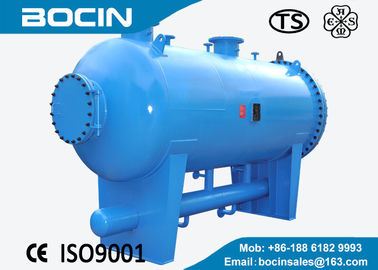

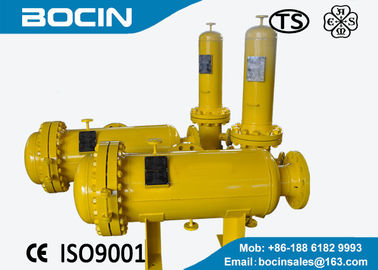

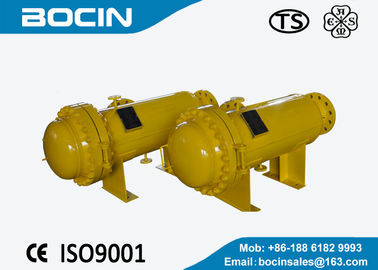

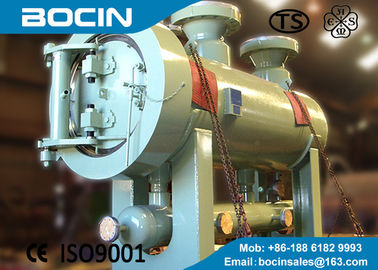

Marsh Gas Filter remove dust and water with fiberglass element
Description: gas filter is suitable for application of removal water and solid particles from the marsh gas.
Technical features:
Pressure of work: 0.1 ~ 40.0 Mpa
Working temperature: - 30 ~ 300 ℃
Applicable medium: natural gas, the artificial coal gas and liquefied petroleum gas, oil associated gas, etc
Manufacturing standards: GB150, ASME
The filter installation: vertical, horizontal
Import and export of installation direction: horizontal and vertical
·Shell material:
20#,16Mn,16MnR,16MnDR,304,316L
· Filter:
Filter material: fiberglass, polyester fiber
Filtration precision: 5 microns to 300 microns
Filtration efficiency: more than 99%
