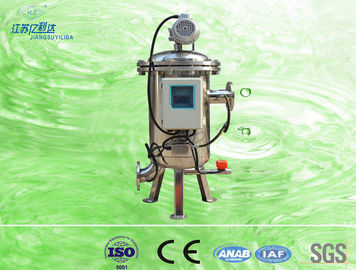

SS stanless steel Automatic self-cleaning water filter with suction brush type

SS stanless steel Automatic self-cleaning water filter with suction brush type
SS stanless steel Automatic self-cleaning water filter with suction brush type

Large Image :  SS stanless steel Automatic self-cleaning water filter with suction brush type

Product Details:
Place of Origin: China
Brand Name: YLD
Certification: CE/ SGS
Model Number: YLXS-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: With plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union or L/C
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Suction Brush Type Water Filter Application: Irrigation And Industrial
Inlet & Outlet Diameter: 4 Inch Flow Rate: 80m3/Hr
Material: SUS 304/316/316L Carbon Steel Connection Mode: Flange
Working Temperature: 0~250 ℃ Filtration Degree: 500 Micron
Working Pressure: 0.6Mpa Drain Diameter: DN 25mm
High Light:

industrial water filtration systems

,

stainless steel water filter

SS stanless steel Automatic self-cleaning suction brush type water filter for irrigation and industrial water filters



Characteristic

1. The equipment structure is compact, sturdy and reliable

2. Back wash water consumption is small, and the required water pressure is low.
3. Filtering has high precision, is suitable for various water quality

4. The pressure drop is small while back wash, does not affect the normal water supply.


Working principle



When water flows into the entrance, the rough filtering net will filter out larger particles and impurities, it reaches

 the fine screen. During the process of filtering, fine screen gradually accumulate the dirt and impurities in water,

then form a filtration impurity layer, as the impurity layer is stacked on the inside of the fine filtration screen.

Therefore there will form a pressure differential between the inside and outer side of the fine screen.
When pressure differential of the filter reaches the preset value, it will start the automatic cleaning, during this

process water supplying is constant, clearing valve opens, pressure in cleaning room and suction dirt device

drops sharply, under the action of pressure difference between the filter cartridge and the sewage suction pipe,

it will generate a suction between sewage suction pipe and the cleaning chamber through nozzle, a sewage

 suction process is finished. Meanwhile, the electric motor drives the sewage suction pipe to start a helical

movement along the axis. The combine of sewage suction device axial motion and rotary motion will completely

 clean the inside surface of the screen, the flushing process will last 40 seconds to 1 minute. Drain valve will be

closed at the end of clean process, filter will prepare next cleaning cycle.




Cleaning system

When the water flows through the filter, impurities will gradually accumulates in the surface of its screen, results

 in the water pressure difference between the water inlet pipe and outlet pipe. When the differential pressure

reaches a preset value 0.05Mp, backwashing starts work. Sucking scanner driven by motor, and do spiral motion

 around the screen, on the scanner suction by sucking impurity particle movement, through the sewage discharge

 valve, but does not contact the screen, the cleaning process for 30-60 seconds. According to the requirement of

 the water quality, suction type (500-30 micros) a variety of filtering accuracy.



Control mode

The filter is equipped with pressure difference switch and integrated controller. When water pressure difference

reaches the preset value, the differential pressure switch will start, electric control system enter into the back

wash process. The back wash time can be preset by the integrated controller.


Specifications:



Model

Pipe dimension(mm)

Flow rate
(T/H)

Outfall dimension

(mm)

Min water pressure(MPa)

Max water pressure(MPa)

YLXS-150S

150

150

DN50

0.25

1.0

YLXS-200S

200

300

DN80

0.25

1.0

YLXS-250S

250

400

DN80

0.25

1.0

YLXS-350S

350

1000

DN80

0.25

1.0






SS stanless steel Automatic self-cleaning water filter with suction brush type 0

FAQ:

01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this filter?
Carbon steel ?or stainless steel (SS304/SS316)?
03. What is the filtration degree?
10 micron or 200 micron?
04. What is the power supply in your country?
220V/60Hz or other?
