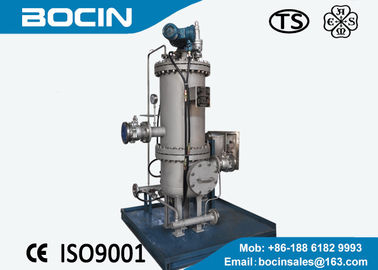

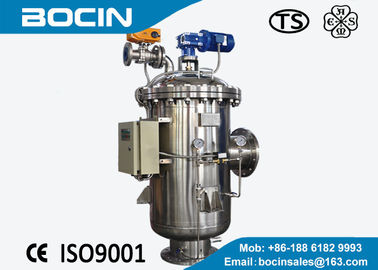

Hydraulic valve self cleaning water filter for industry water filtration

Hydraulic valve self cleaning water filter for industry water filtration
Hydraulic valve self cleaning water filter for industry water filtration

Large Image :  Hydraulic valve self cleaning water filter for industry water filtration

Product Details:
Place of Origin: CHINA
Brand Name: UNITE
Certification: ASME, ISO, ABS
Model Number: U-ZC-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Export Wooden Case
Delivery Time: 10-50 days
Payment Terms: T/T, L/C
Supply Ability: 500 Set/Sets / Month
Detailed Product Description
Material: SS304,SS306,CS Filtration Rating: 50-3500 Microns
Flowrate (m3/h): <3500 M3/h
High Light:

self cleaning filter strainer


industrial water filters

Hydraulic valve self cleaning water filter for industry water filtration


1 , automatic self cleaning filter Quick Detail>>

1 , Stainless Steel brush type self cleaning filter.
2 , Continuesly flow, non-stop operation
3 , High filtration micro rating; 25um

4 , Control mode: Manual, time, DP with SIEMENS control unit

5 , Min working pressure: 2barg

6 , Certificate: ASME, CE, CS, ISO9001



2 , automatic self cleaning filter Description>>

filtration equipment always pay much attention to development in high technology to maintain the world-class quality. And we are the first one operation Project Management in filtration solutions in China. All our project managers are authorized by PMI with PMP certification.


Fast reply service,We established fast reply service center ,the final aim of our company is customer satisfactions.


automatic self cleaning filter working principle>>

When the differential pressure of inlet and outlet pipeline reaches the presented value, the filter will start the cleaning process. The whole self-cleaning process contains two steps: the drain valve opens; the two stainless steel brushes which is driven by motor inside will brush off impurities which was captured by the mesh and then impurity will be discharged from drain valve.. The whole cleaning process takes about 15 to 60 seconds, while during this time, the filtration system does not stop flowing and controlled by a control box.


Hydraulic valve self cleaning water filter for industry water filtration 0


automatic self cleaning filter Products Specifications>>

U-ZC-S series automatic self-cleaning filters is a kind of filter suitable for bad environment, it can be equipped with 3500 microns - 50 micron filter screen and 8-36 "pipeline diameter for different using requirements.Cleaning process is started by a differential pressure switch which is monitoring the different pressure of inlet and outlet pipeline of filter, usually the default value of press difference switch is 0.5 bar (7 psi).


automatic self cleaning filter Technical parameters>>



Product type

Automatic self cleaning filter

Liquid available

River water, lake water ,recycle water, process water, reinjection water, sea water, potable water and etc.

Filtration Rating


Design Pressure Class

General type :0.6MPa/1.0MPa/1.6MPa; high pressure type: 2.0MPa/5.0Mpa

Design Temperature

General type:0-95°C;high temperature:250°C;

Flow rate Range


Filter Area

4970 cm2 - 89530 cm2

Self-cleaning DP


Inlet and outlet size


Flange  Standard

HG20592-2009(China Standard), ANSI B16.5 Class 150 /300/600  , JIS

Filter Element

V-SLOT series slotted screen, material 316L/Super Duplex/Ti2

Internal part  Material

304/316L/CS, special material available (such as 904L,duplex S.S.)

Inner Lining

Epoxy, PA11 for CS Housing or special anti-corrosion requirement

Housing Sealing Material

NBR (Standard/VITON(FKM)

Discharging Valve

Hydraulic valve

Facility Supply

380V AC, 24V DC;custom made is available;


automatic self cleaning filter fittings>>


Made by UNITE


Made by UNITE

Cleaning elements

Made by UNITE


ABB ;SIEMENS also could be chosen


HERTMANN( please remark the brand)

Drain valve

Durot valve, Bermad

Pressure differential switch

UE /Rosemont

Pressure differential switch protection valve

Made by UNITE

pressure differential switch protection filter

Made by UNITE

Circuit protection metal hose

Made by ChengGuang

Control box PLC


Other elements for control box

Schneider, Omron, Delixi


3 , automatic self cleaning filter Brush self cleaning filter application Fields>>

·         Water and waste water

·         Pulp and paper

·         Chemicals

·         Petrochemical

·         Iron and steel

·         Non-Ferrous metal

·         Plastic Extrusion processing

·         Machine coolant filtration

·         Construction industry

If there are any filtrtaion related to liquid/solid separation in actual projects,we will provide high quality and variety of filtration products and our senior engineers will help you to achieve maxmum efficiency and benefit.


Automatic self-cleaning strainers are used to strain fresh, brackish, or salt intake water for plant services such
as cooling, process, and fire protection. The strainers allow water to be recycled within the plant, reducing costs.
• Process Industry: Protect heat exchangers, pumps, valves, and spray nozzles.
• Power Industry :Pump seal protection and cooling water.
• Pulp and Paper Industry :Remove and separate bark and chips for recycling and prevent clogging of nozzles.
• Sewage and Water Treatment Plants :Strain secondary effluent prior to discharge and provide clean plant service water.
• Primary Metal Industry: Provide clean water for quenching, descaling, and blast furnace cooling.


automatic self cleaning filter Competitive Advantage

U-ZC-S series is kind of automatic brush self-cleaning filter suitable for demanding environments, for different application requirements, 25micron  filter screens are available. With 8"-36" inlet/outlet diameter, the self-cleaning filtration is started by a differential pressure switch which is monitoring the pressure difference on the filter inlet and outlet.


Let UNITE meet all your industrial water treatment needs, such as cooling water filters, water tank filters, chiller water filters, sugar juice filters, sand filters, well water filters, r/o prefiltration, spray nozzle protection, white water filters, gland seal filters, screen water filters, industrial water filters, automatic strainers, and more.




Brush automatic self clean filter

Automatic self-cleaning filter

Automatic water filter
