BOCIN cooling water Automatic Self Cleaning Filter with CE certificate

BOCIN cooling water Automatic Self Cleaning Filter with CE certificate
BOCIN cooling water Automatic Self Cleaning Filter with CE certificate BOCIN cooling water Automatic Self Cleaning Filter with CE certificate BOCIN cooling water Automatic Self Cleaning Filter with CE certificate

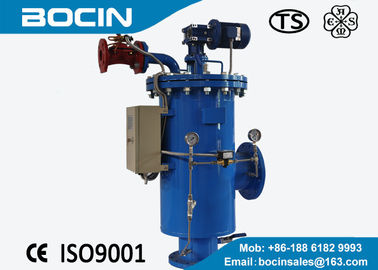

Large Image :  BOCIN cooling water Automatic Self Cleaning Filter with CE certificate

Product Details:
Place of Origin: CHINA
Brand Name: UNITE
Certification: ASME, ISO, ABS
Model Number: U-ZC-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: about 30 days
Payment Terms: T/T, L/C
Supply Ability: 500 Sets / Month
Detailed Product Description
Material: CS, SS304, SS316L Filtration Rating: 25-3500 Microns
Flowrate (m3/h): <3500 M3/h Style: Automatic Self Cleaning Filter
Usage: Water Filtration Color And Size: Customized
High Light:

self cleaning filters

,

self cleaning filter strainer

Automatic Self Cleaning Filter Remove Suspended Particles From Waste Water With 40 Mesh Precision

Description:

Automatic self cleaning filter are highly efficient and automatic backwash. It can realize online automatic cleaning,automatic blowdown functions, operation equipped with differential pressure/time/manual three functions,to provide stable water quality guarantee for your water system. The filters continue to operate during flushing and utilize a small amount of water during flushing, making the filters very efficient.

Quick Details:
1 , Stainless Steel brush type self cleaning filter.
2 , Continuesly flow, non-stop operation
3 , High filtration micro rating; can reach 25um

4 , Control mode: Manual, time, DP with SIEMENS control unit
5 , Min working pressure: 2barg
6 , Certificate: ASME, CE, CS, ISO9001
7, Material: Carbon steel, 304 Or 316L SS
8, Precision: can reach 25 micron

Working principle:
When the pressure difference from the inlet&oultet reaches the setted parameter. The control system make the stainless steel brush rotates and the dirts is brush down to the bottom part. And the bottom drain valve opens and the dirts is drained out. The scraping instruction could also carried out based on setted time quantum.


ModelZC-S1-219ZC-S1-273ZC-S1-325ZC-S1-426ZC-S1-530ZC-S1-630ZC-S1-720ZC-S1-820ZC-S1-920ZC-S1-1020
Inlet/outlet(DN)5080100200250300350400450500
drain(DN)25252550508080808080
folw rate(m3/h)20501503005007001100150020002500
A(mm)8308308301190119014601520160017401850
B(mm)500500500550600785785785900900
D(mm)2192733254265306307208209201020
L1(mm)///325325325400450450530
L2(mm)210235285350415415510600660710















Site Service:
BOCIN cooling water Automatic Self Cleaning Filter with CE certificate 0

For more details, please kindly check below video:
BOCIN cooling water Automatic Self Cleaning Filter with CE certificate 1
