Product Details:
Payment & Shipping Terms:
|
Product Name: | Dispensing Double Cartridge 600ml , Plastic Ab Glue Cartridge | Length: | 215mm |
---|---|---|---|
Main Raw Material: | Pe | A Part Diameter: | 50mm |
Cartridge Type: | Two-component | Function: | For Packing AB Adhesive, Sealant, Epoxy Etc. |
Color: | White |

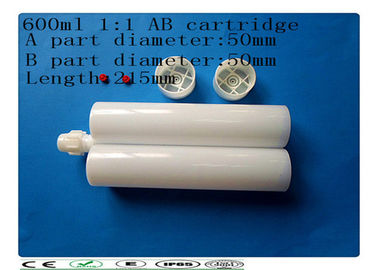

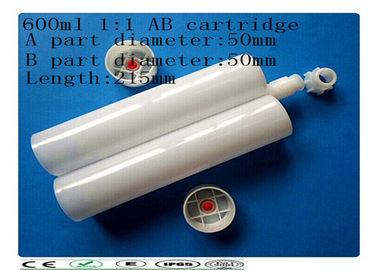

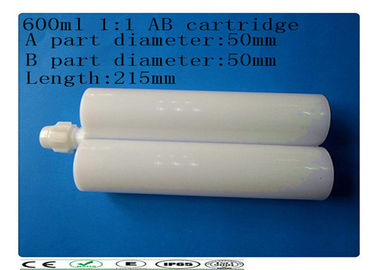

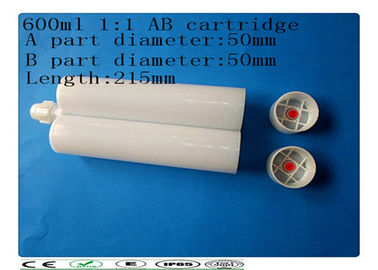

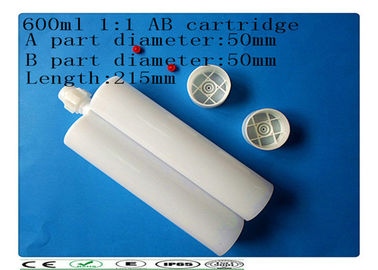

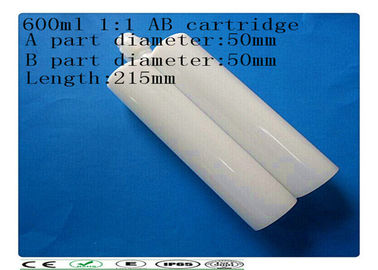

Dispensing Double cartridge 600ml , Plastic AB Glue Cartridge
Specifications:
Item no.: 600ml 1:1 two component cartridge with pistons & cap
Material: Pe
Minimum wall thickness: ≥ 2mm
Part A Diameter :50mm
Part B Diameter : 50mm
Length: 215mm
Ratio: 1:1
AB component cartridge | ||||
Product NO | ratio | A diameter | B diameter | length |
Vs-50-11 | .1:1 | 21.5mm | 21.5mm | 100mm |
Vs-50-12 | .2:1 | 25mm | 18mm | 100mm |
Vs-50-14 | .4:1 | 25mm | 14mm | 100mm |
Vs-50-110 | .10:1 | 25mm | 10mm | 100mm |
Vs-50-11r | .1:1 | 22mm | 22mm | 125mm |
Vs-50-12r | .2:1 | 25mm | 18mm | 125mm |
Vs-50-14r | .4:1 | 31.5mm | 125mm | |
Vs-50-110r | .10:1 | 31.5mm | 11mm | 125mm |
Vs-200-11 | .1:1 | 37mm | 37mm | 150mm |
Vs-235-110 | .10:1 | 50mm | 18mm | 150mm |
Vs-345-110 | .10:1 | 50mm | 18mm | 215mm |
Vs-360-15 | .5:1 | 50mm | 25mm | 215mm |
Vs-385-13 | .3:1 | 55mm | 33mm | 160mm |
Vs-400-11 | .1:1 | 45mm | 45mm | 185mm |
Vs-450-12 | .2:1 | 50mm | 37mm | 215mm |
Vs-585-13 | .3:1 | 55mm | 33mm | 235mm |
Vs-600-11 | .1:1 | 50mm | 50mm | 215mm |
Vs-1500-11 | .1:1 | 79mm | 79mm | 215mm |
Suggested Application Area:
Construction, Concrete, Industry, Hardware, Anchor Fastener, Waterproof,
Automotive, Railway, Tunnel, Appliances, Aerospace, Maintenance and Repair
Marine, Floor, Chemical, Paint etc
Our Service:
Step 1. Let us know the quantities, the brand and quantity of 600ml caulking cartridge, empty cartridge, integral adhesive cartridge you want .
Step 2. We will make the PI of products (Proforma Invoice) to you based on your request.
Step 3. Kindly check the PI,if everything is ok, we will deliver the goods ASAP after received your
payment.
Step 4. After we send out the products,we will provied the tracking No of ab cartridge with you ..
