High quality, Best service,Reasonable price.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Plastic Modling Type: | Mould | ID: | 5.4mm |
|---|---|---|---|
| OD: | 7.6mm | Element: | 17 |
| Length: | 103mm | TOP ID: | 1.5mm |
| Volume: | 1.68ml | ||
| High Light: | plastic static mixer,disposable static mixers |
||

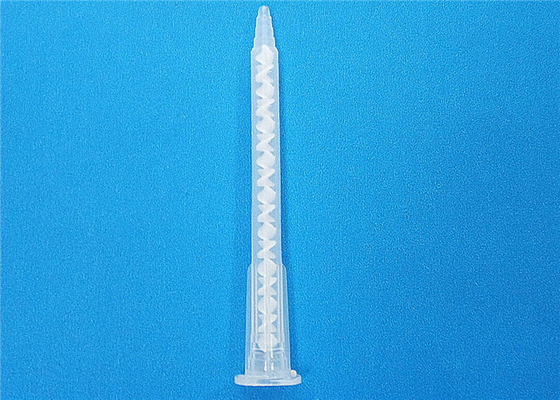

manufactory vma5.4-17s epoxy resin mixer tube
Specifically for 50ML-AB mixing glue gun designed MA & MX series mixing tube, a light square bayonet interface, can and 50ML-AB plastic tube tight connection of liquid from the AB plastic tube into the mixing tube in the tube current doing cutting restructuring exercise which play a mixed role. 2.MA for 1:1 and 2:1, MX fit 4:1 and 10:1 for the two-component liquid mixture blended to provide a low-cost solution using static mixing tube can save labor, reduce waste, improve productivity and dramatically reduce production costs. 3.The product is used in electronics manufacturing, electronics manufacturing, civil construction, automobile manufacturing, gift decoration and other industries, is widely used in a variety of two-component adhesives, fillers mixed (including epoxy, silicone course, this can also be mixing tube applied in any two-component liquid epoxy.
Product Advantage:
1,Piston--Channeled, double wiper piston eliminates trapped air, waste and dripping.
2,Barrel--Uniform barrel wall thickness for safety.
3,Barrel--Oº taper barrels for smooth top-to-bottom piston travel.
4,Outlet--Threaded tip hubs for safe, secure attachment.
5,Optimum syringe barrels are molded from a proprietary polymer that gives them exceptional clarity and chemical compatibility. 6,Computational Fluid Dynamics analysis was employed to develop a new syringe barrel design that provides fast,accurate dispensing with virtually no fluid waste.
7,The unique internal profile ensures smooth, unimpeded laminar flow, without fluid turbulence or dead zones that could trap air.
8,A tapered internal Luer minimizes fluid shear during dispensing and filling operations.
| Product NO. | Inside dia | Outside dia | Element | Length | Volume |
| Vma3.0-08s | 3mm | 4.6mm | 8 | 36mm | 0.19ml |
| Vma3.0-08y | 3mm | 4.6mm | 8 | 37.5mm | 0.18ml |
| Vma3.0-13s | 3mm | 4.6mm | 13 | 51mm | 0.25ml |
| Vma3.0-17s | 3mm | 4.6mm | 17 | 63mm | 0.34ml |
| Vma4.0-17s | 4mm | 5.8mm | 17 | 81.6mm | 0.75ml |
| Vma5.4-07s | 5.4mm | 7mm | 7 | 55.7mm | 0.78ml |
| Vma5.4-17s | 5.4mm | 7.6mm |
17 |
103mm | 1.68ml |
| Vma6.3-20s | 6.3mm | 8.7mm | 20 | 146mm | 3.2ml |
| Vma6.3-20L | 6.3mm | 8.7mm | 20 | 148.9mm | 2.95ml |
| Vma6.3-21s | 6.3mm | 8.7mm | 21 | 153mm | 3.57ml |
| Vma6.3-21L | 6.3mm | 8.7mm | 21 | 151.5mm | 3.33ml |
1. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
2. We can also customize the products to fulfill different requirements.
3.Credibility: We are the 4 year Alibaba Gold Supplier. Our customers are located all over the world.
4.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
5.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
6. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
7. Price: we always offer competitive prices and help our customers to cost down.
8. Quality: we do 100% inspection before the shipment.
9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
We can provide entire glue dispensing system, please feel free to contacts Sales :Nana if in need. Thanks!
Enterprise objective: " The quality first, the prestige is supreme "
Vision Plastic Co., Ltd. is a dispensing syringes, adapters, dispensing needles, mixing tube, dual cartridge, twin cartridge, plastic AB cartridge ,dispenser accessories, dispensers, injection molding, mold making products such as professional production and processing manufacturing enterprises. The company is headquartered in the, ZhangMuTou town Da Keshan Industrial Zone; company has a complete and scientific quality management system, and at the same time, the company also has a strong production capacity, have their own independent R & D department, mold department, injection, production and assembly department and quality detection unit, the company's integrity, strength and quality of products recognized by the industry. The company's products are their own production, quality, and some products are exported to Singapore, Europe, America, Southeast Asia and other places; characteristics of our products, good quality, excellent inexpensive price, shipping on time, welcome friends from all walks of life come to the Vision Plastic Co., Ltd to Visit and ordering .
