2000 Threaded Port 2/2 Way Angle Seat Valve Integrated Pneumatic PPS Actuator

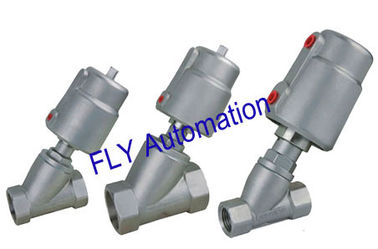

Large Image : 2000 Threaded Port 2/2 Way Angle Seat Valve Integrated Pneumatic PPS Actuator

Product Details:

Place of Origin:	Ningbo
Brand Name:	OEM
Certification:	CE,ISO9001
Model Number:	178612,178605,178681,178677,178663,178667,187844,178696,178692,001239,001703

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD22-52
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	5 working days after receiving the customers' payment
Payment Terms:	TT, Western Union,L/C
Supply Ability:	15000 PCS per month

Contact Now

Detailed Product Description

Material:

Stainless Steel

Media:

Gas, Oil, Air

Power:

Pneumatic

Name:

Angle Seat Valve

Highlight:

angle seat valves

angle seat piston valve

2000 Threaded Port 2/2 Way Angle Seat Valve Integrated Pneumatic PPS Actuator is a 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some aggressive fluids (vacuum services also.) The superior design of the piston is unique to the market, enabling the plug to retract farther from the flow path, ensuring the highest flow capacity. The dual packing design, and a large diameter self aligning stem insures the highest cycle life. A full range of accessory items are available including limit switches, solenoid valves, manual override devices, stroke limiters

Features & Benefits

Integrated pneumatic actuator
NAMUR solenoid mounting pad
Compact assembly
Visual indicator
High Cycle-Life
Actuator rotates 360°
Complete line of accessories

Materials

Body, Plug, & Stem:
Zeus - Bronze
Ares - 304, 316SS
Seats & Seals: PTFE

Valve Configurations

Spring Ret. N.C. Bi-directional Flow
Spring Ret. N.C. Flow from Above Plug
Spring Ret. N.O. Flow from Below Plug
Double Acting Bi-directional Flow
Manual Handle Bi-directional Flow

End Connections

BSP, NPT Threaded (3/8" to 2 1/2")
Tri-Clamp (1/2" to 2 1/2")
Butt Weld (call)
150 lb. ANSI Flanged (call)

Specifications
(fluororubber Seals)

Temperature Range:
-14 to 358°F
Max. Pressure: 150 PSIG

Typical Applications

Steam Applications
Air Drying Equipment
Sterilizers
Autoclaves
Process Control Applications
Laundry Equipment
Textile Dyeing & Drying
Bottling & Dispensing Equipment
Ink & Paint Dispensing
Industrial Compressors

2000 Threaded Port 2/2 Way Angle Seat Valve Integrated Pneumatic PPS Actuator 0

Type	Port Size	DN (mm)	Actuator Size(φ)	PA Actuator	PPS Actuator
Normally Closed Type (NC)	3/8"	13	40	142613	178612
	1/2"	13	40	178606	178605
	1/2"	13	50	178682	178681
	3/4"	20	50	178678	178677
	3/4"	20	63	178664	178663
	1"	25	63	178674	178667
	1"	25	80	186488	187844
	1 1/4"	32	80	178697	178696
	1 1/2"	40	80	178693	178692
	1 1/2"	40	125	187840	–
	2"	50	100	001140	001239
	2"	50	125	001601	–
	2 1/2"	65	125	001373	001703
Normally Open Type (NO)	3/8"	13	40	142616	178609
	1/2"	13	40	178603	178604
	1/3"	13	50	178689	178688
	3/4"	20	50	178686	178685
	1"	25	50	178848	178847
	1 1/4"	32	63	178852	178851
	1 1/2"	40	63	178862	178861
	2"	50	63	001376	001709
	3"	50	80	001603	002164
	2 1/2"	65	80	001377	001710
