| Product Name: | Suction Dispensing Valve For Small Amount Model Vsd-060 | Application: | For Epoxy Dispensing |
|---|---|---|---|
| Material: | Pp,metal | Dimensions: | 170*40*30 |
| Working Presesur: | 4-6bar | Operating Frequency: | <300points/min |
| Mini Dispensing Amount: | 0.1ml | Ratio: | 1:1 |
| High Light: | liquid dispenser valve,dispensing valve |
||

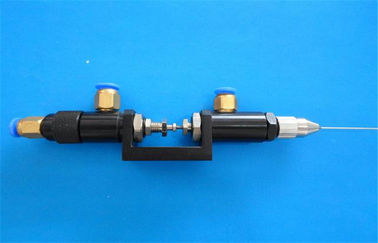

Suction dispensing valve for small amount model vsd-060
Specifications:
| model
|
060 | |||
|
mini dispensing amount |
0.1ml |
|||
|
Material |
pp,metal |
|||
|
Inlet pressure |
1-200bar |
|||
|
Inlet size |
1/8” npt(f) |
|||
|
viscosity |
<5000cps |
|||
|
Dimensions |
170*40*30 |
|||
|
Working Temperature |
Under 40 Celsius |
|||
|
certification |
ce |
|||
Description:
1, The epoxy dispensing valve out of the small amount of glue and closed form USES the plunger seal glue, can instantly stop the flow.
2, It is suitable for low viscosity fluid, such as grease , silicone, epoxy resin, UV, paint and other fluid.
3, It is often used for dispensing technology of 0.01-5 g each time.
4, can cooperate with solenoid valve or dispensing controller automatic control operation.
Applications:
Suction dispensing valve for small amount. Model: vsd-060
A small amount of glue dispensing valve, High function of absorbing liquid back.
Can stop drawing at once. Suitable for one-component oil, resin, epoxy, UV, Paste, butter and so on. can adjust the dispense time, Can used in 0.01- 10g each dispensing process. Can be used with solenoid valves or dispensing
