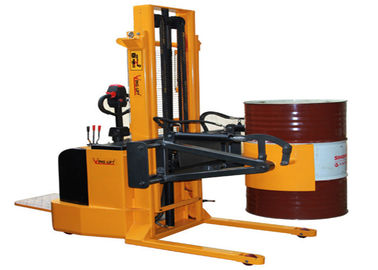

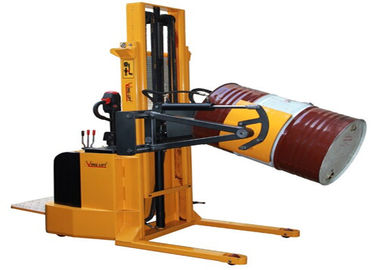

135° Rotator Full Electric Drum Transport Equipment / Drum Lifter And Tilter

135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter
135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter 135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter 135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter

Large Image :  135° Rotator Full Electric Drum Transport Equipment / Drum Lifter And Tilter

Product Details:
Place of Origin: China
Brand Name: YING-LIFT
Certification: ISO,CE
Model Number: YL600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong export package with stretched film and then put onto pallet
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: unlimited
Detailed Product Description
Drum Rotating Range: 135° Type: Full Electric
Lifting Height: 2400mm Suitable: Lift And Tilt 55 Gallon Steel & Plastic Drums
Load Capacity: 600KG Braking: Electromagnetic Braking
High Light:

drum handling equipment

,

barrel handling equipment

135° Drum Rotator , Drum Lifter cum Tilter / Full Electric Drum Handlers



Quick detail of YL600:



With high-grade components and advanced technology in adherence to international quality standards, our YING-LIFT™ Full Electric Drum Lifter cum Tilter YL600 is the most ergonomic equipment available for transporting, lifting and dispensing products from plastic, fiber and steel drums.





Description:



1. Power drive, lift and tilt for ergonomic 55 steel drums pouring;

2. Load capacity 600kg;

3. Imported electrical vehicle exclusive walking control system;

4. Can be operated by one people, labor saving and high work efficiency;

5. Multi-man-machine control handles, stepless speed regulator, high-power reversing switch and manned pedal;

6. Can tilt 135 Degrees for pouring liquid to the last drop;

7. Two Stage;

8. The solid steel construction provides stability during transit.

9. It is quite a one man show, the Drum need not be touched by hand.;

10. Can be used in loading & unloading the Drums from the truck;



Technical Data:



Model

Full Electric Drum Transporter YL600

Drive type

/

Electric

Operating type

/

Standing steer type

Load capacity

kg

600

Lifting height

mm

2400

Turning radius

mm

1840

Max. Grade ability (Fully-loaded/no-load)

%

3/5

Driving wheel size

mm

Ø250*80

Tire



Polyurethane

Brake type



Electromagnetic braking

Drive motor power

kw

1.2

Lifting motor power

kw

2.2

Noise level

db(A)

<70

Battery voltage/capacity

V/Ah

24/210

Charger

V/A

24/30

Net weight

kg

890

Drum rotating range ° 135°



Applications:



As a great solution for quick, safe & fast Drum Handling in warehouses & plants, our YL600 Fully Battery Operated Drum Dumper is designed to remove drums from pallets for dispensing into other drums or tanks. With the feature of simple and easy operation, it is popularly used in the fields of chemical, food, dye, paint workshop, adhesive, oil, cooking oil and other liquid handling, loading and unloading, etc.



Competitive Advantage :



1. This model is provided with a large 24 volt industrial battery providing enough power to run continuously for a 2-shift operation without recharging.

2. it can realize vertical drum lift height to 2400mm above floor level. One gear box is provided to rotate the Drum.

3. Best quality control system;

4. After lifting the Drum hydraulically the Drum can be rotated up to required angle max 135 Degrees by operating the handle.

5. Operated by one people, labor saving and high efficiency;

6. Fully Battery Power operate to drive, power lift and tilter;

7. One-stop for Everything You Need to Move Your Drums;

8. High-efficient Energy-saving and Low-carbon Green;

9. Factory direct sales with best price;

10. The Specialist in Drum Handling Equipment;



135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter 0

135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter 1

135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter 2



135° Rotator Full Electric  Drum Transport Equipment / Drum Lifter And Tilter 3
