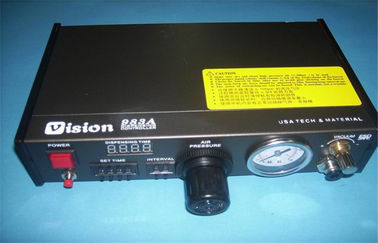

High Efficiency Epoxy Resin Glue Dispensing Machine 12VDC / 24VDC

High Efficiency Epoxy Resin Glue Dispensing Machine 12VDC / 24VDC
High Efficiency Epoxy Resin Glue Dispensing Machine 12VDC / 24VDC High Efficiency Epoxy Resin Glue Dispensing Machine 12VDC / 24VDC High Efficiency Epoxy Resin Glue Dispensing Machine 12VDC / 24VDC

Large Image :  High Efficiency Epoxy Resin Glue Dispensing Machine 12VDC / 24VDC

Product Details:
Place of Origin: China
Brand Name: VISION
Certification: CE/ROHS
Model Number: VS-982
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: western Union/paypal/bank transfer
Supply Ability: 3,00pcs per month
Detailed Product Description
Product Name: Accuracy Robotic Automatic Glue/982 Dispensing Glue Gun Application: Glue ,epoxy, Resin Dispensing
Weight: 2.5KG Size: 230*150*53mm
Standard: CE/ROHS/ Model: Vs-983
High Light:

adhesive dispensing equipment

,

Glue Dispenser Machine



Accuracy Robotic Automatic Glue/982 dispensing glue gun





Specifications:



983 dispensing glue gun

Dimensions

: 235mmx225mmx60mm

Spit mode:

16 kinds of free-setting mode, time display with spit

Power supply

: AC 220V ± 10% / 50Hz AC 110V ± 10% / 60Hz (can be internal conversion)

Internal voltage

: 12VDC/24VDC

type

vs 982

Input pressure / output pressure

10-100PSI / 1-80PSI

Air source

Maximum 0.99MPa (clean dry air without lubrication)

Out pressure adjustment range

0.05MPa - 0.99MPa

Clock out time

00.01-99 .99 S

Artificial time out

Sustainable spit coating, crossed



Out interval adjusttment

0.1-9 .9 S (automatic timing function)

Support Ad files

Vacuum function

adjustable to 600 mm Hg negative pressure control

Repeatability and out Frequency

Accuracy: +0.01% Frequency:> 800 beats / min

Minimum discharge rate

0.001ml

OSD Language

English





Description:



1, Digital display dispensing time and space time, very clearly.
2, Standard configuration,, Vacuum structure to prevent Drooling
3, Many models of liquid dropping function, High efficiency.
4, Widely applicable pressure range, can suit Various viscosity liquids
5, Will be very easy to debug, having debugging switch
6, With perfect liquid dropping signal terminal functions can be used with robot use

Model
Vs-983
Outlet pressure adjustment range  :   0.05Mpa-0.99Mpa
Function Mode  :  Manual mode, 16 kinds of custom mode
Prominent time adjustmen  : Automatic adjustment 0.01s-99.99s/0.001s- 9.999s
Outlet Time Display t  :  Four LED display, can easily fine-tune the discharge volume
Clearance time  :    0.1s-9.9s
Vacuum suction function  :   Can be adjusted to 600 mm Hg negative pressure
Repeatability & spit frequency     :+0.01% & >800 per time
Minimum discharge rate  :   0.0001ml
Dimensions    : 230mmx150mmx53mm
Weight   :   2.5kg




Instruction and installation



1.Installation

Fully-automatic Epoxy Injection Machine

2.Setting the way

Fully-automatic Epoxy Injection Machine



Attention and maintenance





1, Air pressure cant be more than 7bar(10psi), working air pressure cant be more than5.5bar (78psi), if the working air pressurer is more than 4 bar, pls use the original partsfrom the manufacter.



2, The liquid material must be stired evenly before putting to the cylinger needle. It will be better if the liquid material can be stored at the stable temperature of 5 degree centigradeto make sure there is no big change in the density of the liquid material. If the density ofthe liquid is so high, ( it means the liquid is so viscous, it may be hard to spit out). If theliquid need to be diluted, pls compliant to the instruction of the liquid material manufacture.



3, Don’t sharply increase the Vacuum, otherwise, the liquid will be pulled in the catheterby the vacuum. The qty of the vacuum pump back rely on the air pressure level, workingcycle, qty of the liquid to spit. If the qty of the vacuum is too much, the piston will beoverset, disturbing the normal work

4, Avoid to overset the liquid cylinder, otherwise, the liquid will flow to the air cylinderto destroy the internal aprt.



5, Pls clear the stuff left in the cylinder needel when needed. Otherwise the stuff willbecome hard, then disturbing the vacuum pumpback and stop the cylinder needle.



6, After using the machine, the cylinder needle need to be cleaned every time, otherwise,it is difficult to unload the needle when the liquid becomes hard. Normally, it is easy toremove the liquid from the inside of the cylinder needle, just dipping the parts in the handwater for 5~10minutes, all the part will be cleaned.



7, Pls disposal the used needle and cylinder needle at appropriate place to avoide somei nappropriate liquid pollution





Advantage:



Over 6 years of experience in making static mixer , syringes barrels , dispensing machine ,dispensing valve ,needleds , ect ,strong developing team
