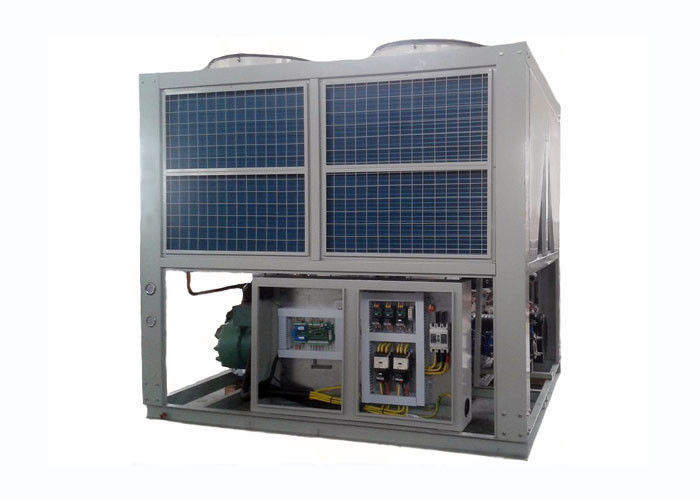

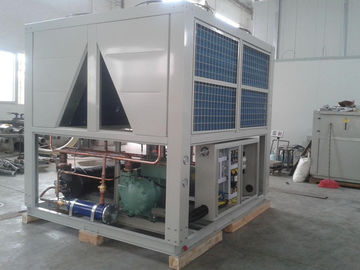

Small Hydraulic Module Air Cooled Screw Chiller For Molding Machine Cooling

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Product Name:	Air Cooled Screw Chiller	Application:	Industrial Cooling
Cooling Capacity:	150kW	Refrigerant:	R134A
Compressor:	Semi-hermetic Screw Type	Power Supply:	380V/3PH/50Hz
Dimensions(LWH) Mm:	240021002350	Material:	Painted Galvanized Steel Sheet
High Light:	packaged air cooled chiller , air cooled water chiller

Air Cooled Screw Chiller With Hydraulic Module, Industrial Cooling Chiller

Specifications:

Model			HWALG150
Cooling capcity		kW	150
Power supply			380V/3PH/50Hz
Cooling power input		kW	60
Refrigerant			R134A
Compressor	Type		Semi-hermetic Screw Type
	Power	kW	54
	Quantity	pcs	1
Energy regulation			0~ 25% ~ 50% ~ 75% ~100%
Air Cooled Condenser and condensing fan	Type		Copper tubes with hydrophilic aluminium fins
	Fan type		Ultra low noise axial type
	Air discharge		Top discharge
	Motor power	kW	4*1.5
Evaporator	Type		Shell and tube
	Outlet water temp.	℃	7~15
	Temp. difference	℃	5
	Water flow	m3/h	28
	Pressure drop	kPa	54
	Connecting pipe size	mm	DN80
Throttle method			External balanced thermal expansion valve
Electric controller			LCD English display screen, automatic microcomputer controller, failure alarm, error checking,balance operation time, Timer on/off,abnormal status display
Safety devices			High&low pressure switch, anti-frozen protection, over load protection, overheat protection,phase sequence protection,etc
Hydraulic modeule (optional)			water pump, strainer, butterfly valve, pressure switch, etc

Net weight		kg	1900
Dimensions(LWH)		mm	2400x2100x 2150

Description:

High efficiency, low noise, adopt import semi hermetic screw compressor.
Multi-level energy control: each compressor has the four-level energy control system.
Comprehensive safety protections: high&low pressure switch, motor overheat protection, overload protection, safety valve protection,water flow switch, phase protection, etc.
Simple operation, LCD or touch screen controller, display run state clearly
Easy installation, testing is finished in factory, charged with refrigerant and refrigerant oil.
No need of cooling tower system, lower maintainancee fees.
Hydraulic module is optional for smaller capacity units.
Cooling capacity range: 150~1100kW.

Applications:

Production cooling, molding machine cooling, plastic fields, etc.

Small Hydraulic Module Air Cooled Screw Chiller For Molding Machine Cooling 0
