CPVC butterfly valve, Wafer Connection Electrical Actuator Plastic Butterfly Valve

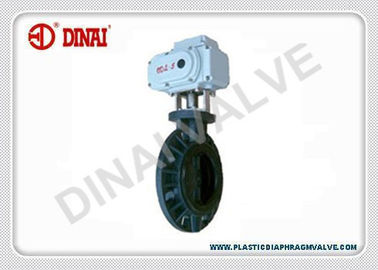

Large Image : CPVC butterfly valve, Wafer Connection Electrical Actuator Plastic Butterfly Valve

Product Details:

Place of Origin:	China
Brand Name:	DINAI
Certification:	ISO
Model Number:	D971X-10V

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	$78~$3500
Packaging Details:	Wooden Case
Delivery Time:	7-15 Days
Payment Terms:	T/T; L/C
Supply Ability:	500~2000 Sets/Month

Contact Now

Detailed Product Description

High Light:

Diaphragm Valve

CPVC butterfly valve

Wafer Connection Electrical Actuator Plastic Butterfly Valve , CPVC butterfly valve

Descrition:

CPVC butterfly valve is all plastic made, the material of body and disc is CPVC, stem is 304 stainless steel, seat material is

EPDM or FRM. Size range from 1”(D32mm) to 24”(D630mm); the valve can be operated by hand lever, worm-gear, electrical actuator and pneumatic actuator.

Compare with UPVC butterfly valve, CPVC butterfly valve has better mechanical property, better anti-aging performance

our CPVC material of butterfly valve is from Lubrizol company, that ensure our products excellent quality.

Applications:

CPVC butterfly valve is widely used for in chemical plant, paper plant, electro-plating plant, metallurgy , mining, waste water treatment, etc.

Specifications:

Size	D1	D2	D3	L1	L	H1	H2	n-Φ	Kg/set
1”(D32mm)	35	85	135	200	35	90	70	4-14	4.3
1-1/4”(D40mm)	35	100	135	200	35	90	70	4-18	4.3
1-1/2”(D50mm)	47	110	150	200	39	100	70	4-18	4.3
2”(D63mm)	56	125	160	220	40	105	70	4-18	4.5
2-1/2”(D75mm)	71	145	185	220	46	105	70	4-18	4.6
3”(D90mm)	85	160	195	280	46	123	85	8-18	4.9
4”(D110mm)	105	180	215	280	54	123	85	8-18	5.4
5”(D140mm)	131	210	250	300	70	150	93	8-18	7.3
6”(D160mm)	153	240	285	300	74	176	93	8-22	8.1
8”(D225mm)	204	295	340	245	87	210	93	8-22	17
10”(D280mm)	255	350	395	245	114	240	93	12-22	21
12”(D315mm)	307	400	445	245	114	270	93	12-22	28
14”(D355mm)	358	460	505	210	127	300	93	16-22	33
16”(D400mm)	389	515	580	210	140	350	108	16-22	41
18”(D450mm)	446	565	615	280	152	370	108	20-26	61
20”(D500mm)	494	620	670	280	152	400	108	20-26	85
24”(D600mm)	590	725	780	280	178	465	108	20-30	118

CPVC butterfly valve specification
Operation		Elecrical
Working pressure		1.0Mpa
Working pressure		-14℃~80℃
Standard		DIN/ANSI/JIS/BS
1	Actuator	Steel/aluminium alloy
2	Body	CPVC/FRPP
3	Seat	EPDM/FPM
4	Stem	Stainless steel
5	Disc	CPVC
