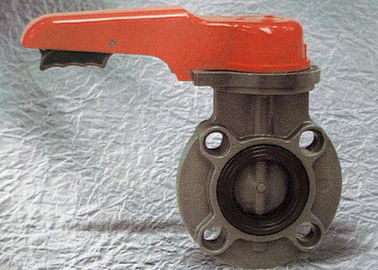

High Light: | PVC Valve,CPVC butterfly valve |
---|
FEATURES
• Sizes from 1” to 24”.
• PP-GF body, CPVC,UPVC,PVDF,RPP,PPH disc
• EPDM/FPM seat.
• working temperature from -10℃ to 120℃.
• working pressure PN10 bar.
• Minimum flow resistance.
• ANSI#16.5,JIS10K,DIN wafer connection.
APPLICATION AREA
• acid pickling piping line
• electroplating liquid carrying.
• pharmaceutical factory acid and carrying.
• oil and gas industrial.
• textile mill,Leather Factory acid piping line.
• mining plant, metallurgy plant, fertilizer plant waste liquid piping line.
• semiconductor water treatment piping line.
• waste water treatment piping line
• food industrial salt water piping line
• chlorine plant
NO. | PART NAME | QTY | MATERIAL | ||||||||||||
1 | Cap | 1 | PP | ||||||||||||
2 | Bolt | 1 | Stainless Steel | ||||||||||||
3 | O-ring | 1 | EPDM FPM | ||||||||||||
4 | locking Plate | 1 | PP | ||||||||||||
5 | Screw | 4 | Stainless Steel | ||||||||||||
6 | Screw | 4 | Stainless Steel | ||||||||||||
7 | O-ring | 2 | EPDM FPM | ||||||||||||
8 | Disc | 1 | UPVC CPVC PVDF PP | ||||||||||||
9 | Stem | 1 | SS304 | ||||||||||||
10 | Seat | 1 | EPDM FPM | ||||||||||||
11 | Body | 1 | UPVC CPVC PVDF PP | ||||||||||||
12 | Hand Lever | 1 | PP | ||||||||||||
13 | Spring | 1 | Steel | ||||||||||||
14 | Pin | 1 | PP | ||||||||||||
15 | Handle | 1 | ABS | ||||||||||||
Norminal Size | D1 | d | L | H1 | H2 | H3 | A | n | Φh | Weight/kg | |||||
DN(Inch) | DIN | ANSI | JIS | UPVC | CPVC | PVDF | PP | ||||||||
40(1-1/2") | 110 | 99 | 105 | 45 | 39 | 75 | 100 | 56 | 220 | 4 | 18 | 1.3 | 1.4 | 1.5 | 1.2 |
50(2") | 125 | 120 | 120 | 56 | 42 | 83 | 110 | 56 | 220 | 4 | 18 | 1.4 | 1.5 | 1.6 | 1.3 |
65(2-1/2") | 145 | 140 | 140 | 69 | 46 | 93 | 120 | 56 | 220 | 4 | 18 | 1.5 | 1.6 | 1.7 | 1.4 |
80(3") | 160 | 152 | 150 | 77 | 46 | 106 | 135 | 56 | 250 | 8 | 18 | 1.9 | 2.0 | 2.1 | 1.8 |
100(4") | 180 | 190 | 175 | 102 | 56 | 119 | 150 | 56 | 250 | 8 | 18 | 2.3 | 2.4 | 2.5 | 2.1 |
125(5") | 210 | 216 | 210 | 129 | 66 | 132 | 168 | 69 | 320 | 8 | 18 | 4.1 | 4.2 | 4.3 | 3.9 |
150(6") | 240 | 240 | 240 | 150 | 71 | 143 | 183 | 69 | 320 | 8 | 22 | 4.8 | 5.0 | 5.2 | 4.4 |
200(8") | 295 | 298 | 290 | 195 | 87 | 170 | 214 | 69 | 400 | 8 | 22 | 8.0 | 8.4 | 9.0 | 7.3 |
NO. | PART NAME | QTY | MATERIAL | |||||||||||||
1 | Hand Wheel | 1 | Cast Iron | |||||||||||||
2 | Gear-Box | 1 | Cast Iron Steel | |||||||||||||
3 | Bolt and Nut | 4 | Steel | |||||||||||||
4 | Stem Seal | 2 | EPDM FPM | |||||||||||||
5 | Seat | 1 | EPDM FPM | |||||||||||||
6 | Stem | 1 | Stainless Steel | |||||||||||||
7 | Disc | 1 | UPVC CPVC PVDF PP | |||||||||||||
8 | Body | 1 | PVDF PP | |||||||||||||
Norminal Size | D1 | D1 | d | A1 | A2 | L | H1 | H2 | n | Φh | Weight/kg | |||||
DN(Inch) | DIN | ANSI | JIS | UPVC | CPVC | PVDF | PP | |||||||||
125(5") | 210 | 216 | 210 | 250 | 131 | 190 | 100 | 70 | 125 | 256 | 8 | 18 | 7.5 | 7.8 | 8.0 | 7.0 |
150(6") | 240 | 240 | 240 | 285 | 153 | 190 | 100 | 74 | 143 | 269 | 8 | 22 | 8.0 | 8.4 | 8.5 | 7.5 |
200(8") | 295 | 298 | 290 | 340 | 204 | 245 | 110 | 87 | 170 | 303 | 8 | 22 | 16.0 | 16.8 | 18.0 | 15.0 |
250(10") | 350 | 362 | 355 | 395 | 255 | 245 | 110 | 114 | 198 | 333 | 12 | 22 | 20.0 | 21.5 | 23.0 | 18.5 |
300(12") | 400 | 400 | 445 | 307 | 245 | 125 | 114 | 223 | 363 | 12 | 22 | 28.0 | 30.0 | 32.0 | 26.0 | |
350(14") | 460 | 505 | 358 | 210 | 125 | 127 | 253 | 393 | 16 | 22 | 32.0 | 34.5 | 37.0 | 30.0 | ||
400(16") | 515 | 580 | 389 | 210 | 130 | 140 | 290 | 458 | 16 | 26 | 42.0 | 45.0 | 48.0 | 39.0 | ||
450(18") | 565 | 565 | 615 | 446 | 280 | 130 | 152 | 308 | 478 | 20 | 26 | 60.0 | 64.0 | 68.0 | 56.0 | |
500(20") | 620 | 620 | 670 | 494 | 280 | 150 | 152 | 235 | 508 | 20 | 26 | 85 | 90 | 95 | 80 | |
600(24") | 725 | 780 | 590 | 280 | 150 | 178 | 390 | 573 | 20 | 30 | 120 | 125 | 130 | 114 |
