Ro Water purifier Machine,
Water RO System
3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H
1. Form raw water tank to pure water tank
2. Capacity: 3000L / H
3. Material: Stainless steel 304
4. UPVC connection pipes

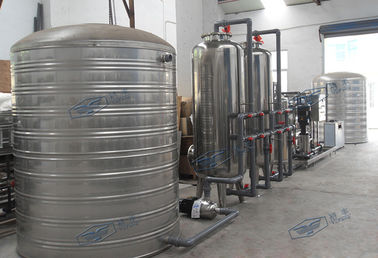

1) Raw water tank
2) Raw water pump

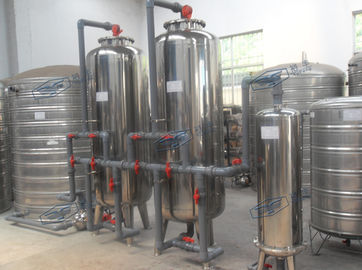

3) Quartz sand filter
4) Active carbon filter
7) Precision filter
7) Water buffer tank
8) Ro system
9) UV sterilizer
10) Pure water storage tank

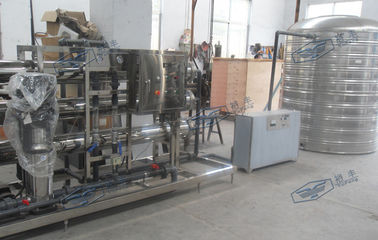

The whole water treatment system is made of high quality of stainless steel 304 material, treat the raw water to be drinkable for water bottle filling packing, for beverage and food processing line.
Ro system is more important in the line, ro membrane is the key part of whole RO, it will decide the system workable or not. The water passing RO can remove bacterial, organic substance and microorganism and so on.
No phase change will be generated in RO device during water purification. Water recovery rate is high, small in dimension, high automation.
Whole SUS304 rack, automation part apply AC contactor control, apply flow meter, pressure gauge and auto flush electrical magnetic valve, etc.
Protect device:Low pressure and high pressure protect switch is set before water entry and after water discharge. Booster pump and system will stop when water supply is not enough. Make cut off on booster pump when there is too much discharge pressure to avoid system running under pressure exceeding status.
It is automatic system, interlock will be applied under auto model. Pretreatment is controlled automatically, original pump and ro unit is using integrate control. Control panel will work on system monitoring and parameter set up. Instruments and gauges are settled to show parameters. Interlock set up is good for safe running.
1. The machine is mainly used to treat the raw water to be drinkable for home use or factory use.
2. It is used to remove the suspended solids, bacterial, organic substance and microorganism, plastic particles, microorganisms, chlorine,taste,some heavy metal ions and so on.
|Flow rate||≥6m3/h (25℃)|
|Operation||automatic control, automatic flush|
|Membrane material||RO membrane|
|Membrane qty||4PCS OF 8040|
For more details, please feel free to contact me.
