High quality, Best service,Reasonable price.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Model: | KEL-AS1200P2 | External Size: | 1200x2000x2180mm |
|---|---|---|---|
| Internal Size: | 800x1930x1910mm | Wind Spped: | >25m/s |
| Nozzle: | 24pcs | HEPA Air Filter: | 2 Pcs |
| High Light: | pharmaceutical clean room,semiconductor clean room |
||

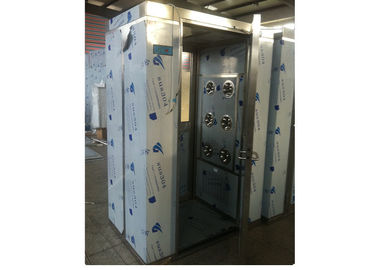

HEPA Filtered Clean Room Air Shower Equipment For Biological Engineering
Quickly Detail
External Size: 1200x2000x2180mm
Internal size : 800x1930x1910mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 2-4 person
SUS nozzle: 24pcs
Blower way : two side blowing
Air speed :>25m/s
Power: 380V/50HZ
Introduction:
Air shower are self-contained chambers installed at entrances to clean room and other controlled environments, they minimize particulate matter entering or exiting the clean space, personnel and materials entering or exiting the controlled environment are filtration by high velocity HEPA-filtered air jets with velocities of 22-30m/s, then contaminated air is drawn through the base within the unit, filtered and re-circulated:
Applications:
it can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.
Operating Features :
Parameter :
KEL-AS1200P-2 Cleanroom Air shower | ||
Model | KEL-AS1200P-2 | |
External size(mm) (WXDXH) | 1200x2000x2180 | |
Work zone | 800x1930x1910 | |
Persons per cycle | 2-4 person | |
Air shower Duration | Factory set at 12 second (adjustable) | |
Material | 1: Entirety Sus304.(T=1.0/1.2mm) | |
Fan consumption | 0.75KWX2 set | |
Air flow of fan(m3/h) | 1300m3/h | |
Fan run (r/min) | 2800r/min | |
Nozzle in stain less steel | 80 pcs | |
Wind speed(m/s) | > 22-27m/s | |
Noise level(dB) | <62dB | |
LED Fluorescent Lamp | 20wx2PCS | |
| Size(mm) | 630X630X69mm |
Efficiency | 99.99%@0.3um | |
Air velocity | 1000(m3/h) | |
Resistance | <220pa | |
| Size(mm) | 785x385x21 |
Efficiency | 75% @ 5um | |
Resistance | <30 Pa | |
Electrical | Power supply | 380v/50Hz OR 380v/60Hz |
Customer’s design is available. | ||
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
