| Material: | CS, SS | Design Standard: | GB Or ASME |
|---|---|---|---|
| Filtration Micro Rating: | 0.5um-200um | Control Mode: | Automatic Or Manual |
| Inlet/outle Size: | As Your Pipe Size | Clean Time: | Could Be Set As Your Request |
| High Light: | backwash water filter,back flush filter |
||

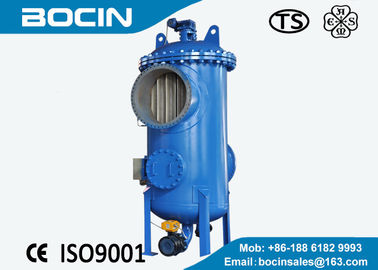

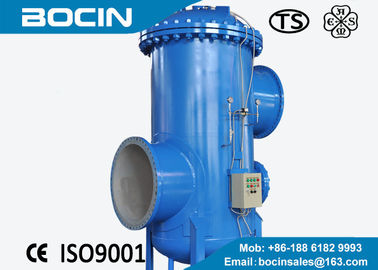

Automatic Back Flushing Filter for high precision gas solid,solid liquid separation
Description:
U - FC series backwash filter has been successfully and stably applied in catalyst/heavy metal recycling, oil refining, polysilicon, water treatmen, etc. for high precision gas-solid/ solid-liquid separation.

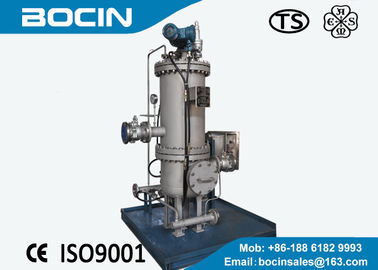

U-FC-B standard back flush filter system can function as individual manual machine or total automation, making it suitable for high precision, fully closed operation, thus making the whole process system safer and more effective , and maximize human resource saving.
| Model | FC-B-400 | FC-B-450 | FC-B-500 | FC-B-550 | FC-B-600 | FC-B-650 | FC-B-700 | FC-B-800 | FC-B-900 | FC-B-1000 |
| (DN) | 50 | 80 | 100 | 100 | 100 | 125 | 125 | 150 | 175 | 200 |
| Max flow rate(m3/h) | 9.5 | 11 | 15.5 | 18.5 | 21 | 27.5 | 30 | 42.5 | 54.5 | 65 |
| Filter area(m2) | 3 | 3.4 | 4.8 | 5.8 | 6.6 | 8.6 | 9.4 | 13.3 | 17.1 | 20.4 |
| A(mm) | 700 | 750 | 800 | 900 | 900 | 1000 | 1000 | 1100 | 1200 | 1250 |
| B(mm) | 350 | 350 | 400 | 500 | 500 | 550 | 550 | 550 | 600 | 600 |
| C(mm) | 1150 | 1200 | 1250 | 1250 | 1250 | 1300 | 1300 | 1350 | 1400 | 1450 |
| D(mm) | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 800 | 900 | 1000 |
| L1(mm) | 330 | 355 | 380 | 405 | 430 | 455 | 480 | 540 | 600 | 680 |
Features and properties:
1,Streamline design, economic affordable; Maximize the satisfaction of the clients’ process requirements, and at the same time greatly reduce costs for your production.
2,Variety of configurations, suitable for all kinds of conditions in gas separation of solid and liquid separation solid;
3,High precision, filter options foreign advanced filter, filtering precision can reach 0.5 mu m filtering efficiency is above 99.9%;
4,Flanged, threaded connection, very convenient to take out a single or all filter elments from the top of the filter; Meanwhile, compared with traditional filter structure, it reduces the risk of damage during installation;
5,PLC control, the filter is equipped with a full set of control system, when the in and out pressure difference reaches a certain value (adjustable), control system sends commands to start the counter blowing process;
6,Convenient installation: all attachments are composed of pry components;
7,Variety of materials to choose from: carbon steel, stainless steel, alloy steel;
8,Filters meet GB150-2011 and ASME specifications;
9,Design the best filter system based on customers’ working conditions.
Technical parameters:
1. Working pressure: 0.2-0.2 Mpa
2. Working temperature: 196 ~ + 800 ℃
3. The filtration precision: 0.5 microns to 200 microns
4. The power supply voltage: 24 v DC or AC 220 v
5. Air pressure: 0.45 ~ 0.6 Mpa
6. Working mode: differential pressure, timing, manual
7. Level of explosion-proof: Ex dII BT4, CT4, CT5
8. Optional filter: PA/PE polymer powder sintered filter, wedge filter, stainless steel powder sintered filter, titanium rod filter sintering net filter, etc
