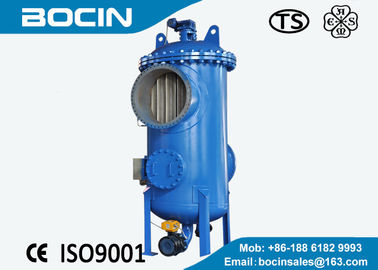

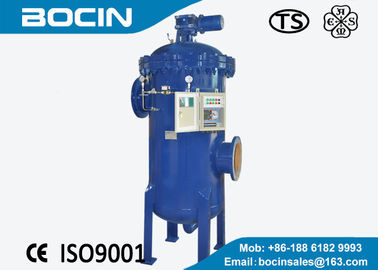

Carbon steel Auto Back Flushing Filter for suspended impurity filtering

High Precision Automatic Back Flushing Candle Filter for absolute ethyl alcohol

Quick Detail:
1 , Type:automatic backflush filter
2 , Control:automatic by PLC
3 , Cleaning method:back flushing.
4 , Certificate: CE,CS, ASME, ISO9001

Description:

U- FC - J series tube bundle type automatic filtration system, the system automatically without parking regeneration of filter element, is a fully automatic self-cleaning filters, effective reduction of artificial cleaning, do not need to change the filter element, in the continuous production, high risk operation environment and operation unfavorable use ordinary metal filter, etc widely used.

Specification:MDEL :U-FC-J-600
FLUID :absolute ethyl alcohol
SOLID PART :Carbon black + alumina powder
FLOW RATE :300L/hr
SOLID PART C0NTENT :22.5kg/batch
OPERATING TEMPERATURE :normal temperature
DESIGN TEMPERATURE :80℃
OPERATING PRESSURE :0.4Mpa
DESIGN PRESSURE :0.5a
SIZE OF FILTRATI0N :1um
IEAD&SEL :304
INTERNALS/ELEMENT :304
STAY-B0LT :304

Site Service:

Site Service:

Principle:

Filtering status: While filtering, filter material will be sent into the filtering housing by feed pump first; when it passes through filter cloth, solid particles will be stopped on the filter cloth. And as the solid particles growing,they will become filter cakes.


Blow-back status: After filter operates normally for a period of time, namely when the thickness of the filter cake on the porous filter element reaches a certain value, the PLC will give an order signal to control material feeding (stoppage), fully expel the residual liquid in the filter, and then PLC signal control blow-back outlet (compressed air, nitrogen or steam) for back flushing to make the filter cake fall off.


Discharging status: After back flushing lasts for a period of time, open slag-drip opening for slagging, and then close it to get back to the initial state before filtration to get ready for the next round of filtration.

Advantage:

1, the back flush filter type is a kind of high efficiency, energy saving, automatic closed precision filtration equipment;

2, solid content and more drain slag liquid filtration precision equipment;

More than 0.2 um particles one-time complete filter, filter design USES double entry structure, wide application, good filtering effect.

With gas back row 4, slag, slag discharge clean quickly, suitable for a variety of viscous material;

3, filter has direct filtration, precoat filters, slurry concentration, filter cake recycling five big functions;

4, fully enclosed filter, safety in production, no smelling out completely, no environmental pollution and cover an area of an area small;

5, a specially designed sealing system for large caliber pneumatic slag draining bottom cover quick opening;

6, easy automatic control operation;

7, according to the technological requirements in the body peripherals insulation jacket, the body's internal lining anticorrosion material layer;

8, the whole process can realize full automation.
