Product Details:
Payment & Shipping Terms:
|
| Product: | Cold Runner Plastic Injection Mold | Material: | Steel |
|---|---|---|---|
| Mold Base: | LKM , HASCO , DME , MISUMI | Runner Type: | Cold Runner |
| Injection Machine: | 90 , 120 ,180 ,270 T | Mold Size: | Custom |
| Parts: | Household , Construction , Production , Medical Facility | Mold Life: | 500000 - 1000000 Shot |
| Design Software: | Solidworks,UG,AutoCAD | Design Ability: | Free Design Service |
| Lead Time: | Prompt | ||
| High Light: | Cell Phone Case Mold,injection mold making |
||

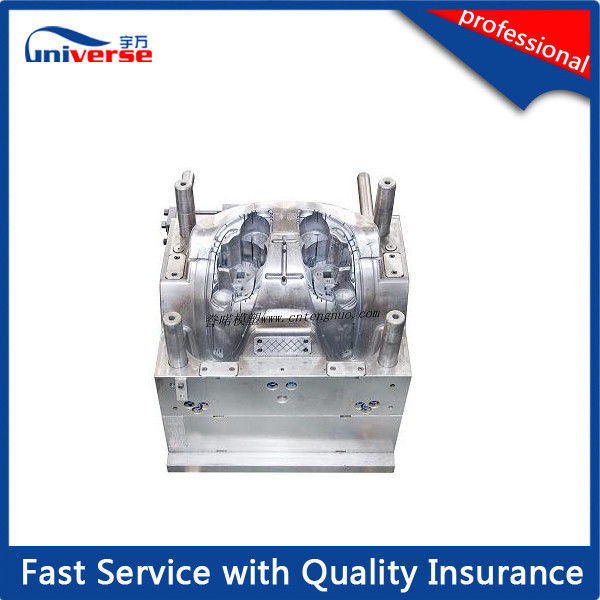

High Polishing Chromium Plating Plastic Injection Mold , OEM / ODM
Specification:
|
Name
|
Plastic Injection Moulding |
|
Plastic Material Type:
|
ABS, ABS+PC, PP, PS, POM, PVC, TPE, TPU, Acetal,PA6.6,PA6,PA6.6+30GF,etc. |
|
Mould Steel:
|
Saarstahl, Assab, AISI & JIS, DAIDOSTEEL, ALCOA, S136, 1.2311, 1.2738, NAK80, 2344, 420, 2083 |
|
Mold Base:
|
Hasco standard, DME standard, LKM standard,PUNCH, JINHONG, Other |
|
Cavity No.:
|
Single, Multi Cavity, Change Insert |
|
Surface treatment:
|
Zinc plating, nickel plating, chromium plating, brass plating, decromet, etc. |
|
Mould Texture
|
EDM,VDI 3400 Code,MOLD-TECH,Texturing |
|
Cavity ,CoreFinishing
|
High Polish, mirror face, Grade 3 Diamond, Paper Finish,Stone Finish, |
|
Type of Gate
|
Cold gate, Hot Runner Gate, Sprue Gate, Pin Point Gate, Submarine |
|
Type Of Ejection |
Ejector Pin, Ejector Blade, Stripper Plate, Ejector Sleeve Lifter, Pneumatic Ejector. |
Molding Making:
Material of steel
cavity and core use imported S136 stainless steel with fine polishing, high hardness to get mold's high
precision
and good quality.
About gate
pin- valve gate ,pneumatic drive the nozzle pin simultaneous high speed open and close action. which can
effectively control the injection hole open and close actions on each cavity. reliable seal function, smooth
moving,
low thermal expansion rate ,long using life and also saves electric energy.
About hot runner
hot runner system is designed and made by ourselves, it can achieve ideal and prompt heating effect for
preform
production ,cavity with lower injection pressure to reduce wear and tear of mould parts.
Heat system
with double heating system,it has separate temperature control mode ,the heat bar are used to heat the
mould
mainfold plate,small heaters supply the heating temperature for cavity nozzle continuously.
Cooling system
each parts including core ,cavity and valve gate has independently cooling system.
Production Process:
|
Sample/drawing |
|
|
|
Steel, cavities, price, delivery time, payment terms, shipment. |
|
|
After all confirmed-place order and usually need 50% deposit |
|
|
We supply part and mould structure design |
|
|
CNC,EDM, and so on |
|
|
Testing mould to make sure everything is ok. |
|
|
We send samples for customers checking |
|
|
After all confirmation,the customer send the balance to us before shipment |
|
Delivery |
|
System Highlights:
Reduces material wastage compared to conventional runner system molding
Allows for more cost-effective fully automatic molding
Complete control of material flow, allowing for molding of different parts in the same mold
SGS Certification:
Advantages:
We should save you money through intelligent tooling design and efficient production runs. We have advanced CMM Machine, CNC Machine, EDM Machine, Wire-Cutting and other normal machine, the injection machine from 20 ton to 1000 Ton. We can injection almost any kind of plastics such as ABS, PC, PBT, ABS-PC, PP, PMMA, PE, nylon, etc. The steel we use for manufacturing moulds are P-20, H-13(fully hardened mould with HRC 52-54, 420 SS (Stainless Steel),ETC or as specified by the customers.
Information of Univers Plastic Co., Ltd
Dongguan Universe Plastic provides high quality, high precision molds capable of producing over 50,000 pieces. Multiple cavity, complex molds are designed to fit customer requirements. Material selection is extremely important depending on the application. Universe Plastic's engineers will determine which alloy or combinations of alloys best fills the requirements, while maintaining low costs. Professional Software engineers help clients with SolidWorks designs of their molds to ensure structural integrity, correctness, and longevity of their design. Utilizing a modern, fully equipped faciltiy, holding to the highest standards of precision and safety. all aspects of Mold Tooling are performed, which results in short lead times with no loss of quality or performance.
