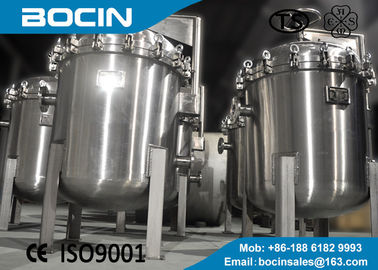

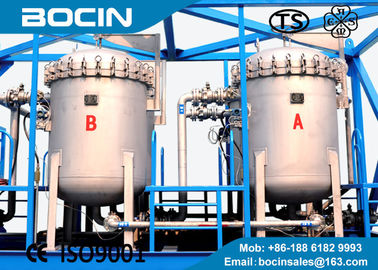

Medium precision stainless steel liquid Bag Filter Housing water filtration system

Large Image : Medium precision stainless steel liquid Bag Filter Housing water filtration system

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	UNITE
Certification:	ASME, ISO9001
Model Number:	U-DS-S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 Sets / Month

Contact Now

Detailed Product Description

Model:	Top Entry Single Bag Filter	Application:	Chemical Filtration
Housing Material:	304, 316L, CS, Etc	Operating Temperature(℃):	90
Design Pressure (MPa):	<4 (40bar)	Filtration Rating (μm):	0.5-500 Microns
Highlight:	stainless steel bag filter housing , multi bag filter housing

Top Entry Water Filter Housing For Chemical Filtration

Product Introduction:

UNITE standard top entry type single bag filter, simple in shape, with the most advanced precision casting top type filter structure, to optimize the best performance, to meet a variety of harsh working conditions, is currently the most popular and acclaimed single bag filter type.

Advantage:

The sealing effect is better, and the side leakage is avoided;
Large filtering area and high filtration efficiency;
The replacement bag is more convenient and quick, and the operation cost is lower;
Reasonable structure, more stable and reliable filtration;
The installation height can be adjusted to meet the specific requirements of the application space;
Personalized design, all for your sake.

Medium precision stainless steel liquid Bag Filter Housing water filtration system 0

Design standard:HG/T21637-1991

Shell material:CS,SS304,SS316L

Jointing:Thread or flange

Accuracy range:0.5~500μm

Work Pressure:0.1~1.0Mpa

Work Temp:-30~200℃

Surfacing: painting, sandblasting, polishing and so on

Shell material: 20#, 304, 316L, 2205,

2507.

Gasket: silicone rubber, butyl rubber,

PTFE rubber

Filter bag material: polyester,

polypropylene, nylon, PTFE, glass fiber
