| Model: | Industrial Quick Opening Of The Liquid Multi-bag Filter Housing And Filter Bag | Application: | Sea / River / Lake / Rain / Industrial Water Filtration |
|---|---|---|---|
| Housing Material: | 304, 316L, CS | Precision: | 0.5-800 Um |
| Design Pressure: | 0.1-4.0 Mpa | Design Temperature: | -50-220 ℃ |
| Inlet/outlet Diameter: | 1''-16'' | ||
| High Light: | stainless steel bag filter housing,multi bag filter housing |
||

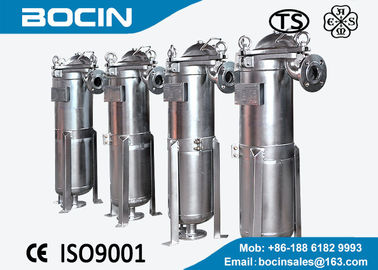

Industrial Quick Opening of the Liquid Multi-bag filter housing and filter bag
Description:
Bag filter is a type of multi-use filtration equipment that has wide application and strong adaptability. Often the best choice for cost-sensitive applications, they are easy to install and change of the filter bag is quick and easy.
UNITE standard multi bag filter for 60~5000m /h flow rate condition, for a small number of bag filter, with the rotary arm handwheel and standard bearings, to complete the opening and operation. The bag is larger than the 12 above the bag filter, can choose UNITE cylinder or hydraulic auxiliary, in the open and closed only 1 operations. The auxiliary device includes relief valve, positioning pin and so on, so as to ensure the safe operation of the equipment.
Standard multi bag filter low pressure drop, high throughput, long service life; quality seal, ensure convenient, reliable operation; repeated washing, filtering accuracy is excellent; low prices, especially for pre filtering; structure: multi bag filter bag filter, fast open；Standard model for 2~24 bags, max has been manufactured to 40 bags
Features:
Design criteria: ASME, GB150, or HG/T21637-1991
Shell material: CS, SS304, SS316L or Hastelloy alloy and other special materials
Import and export connection: thread or flange
Range of accuracy: 0.5~800um
Working pressure: 0.1~1.0Mpa
Operating temperature: -30~200 ℃
Surface treatment: painting, sandblasting, polishing and so on
Gasket: silicone rubber, butyl rubber, PTFE rubber
Filter bag material: polyester, polypropylene, nylon, PTFE, glass fiber
Filter bag type: 1 # 2 #, 3 #, 4 #.
Specifications:
| Model | DS-B-S3 | DS-B-S4 | DS-B-S5 | DS-B-S6 | DS-B-S7 | DS-B-S9 | DS-B-S10 | DS-B-S14 | DS-B-S17 | DS-B-S21 | DS-B-S24 |
| Inlet/Outlet (DN) | 80 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 300 | 350 | 350 |
| Max flowrate(m3/h) | 75 | 100 | 125 | 150 | 175 | 225 | 250 | 350 | 425 | 525 | 600 |
| Filter area (m2) | 1.35 | 1.8 | 2.25 | 2.7 | 3.15 | 4.05 | 4.5 | 6.3 | 7.65 | 9.45 | 10.8 |
| A(mm) | 1203 | 1206 | 1268 | 1288 | 1370 | 1440 | 1480 | 1555 | 1845 | 1925 | 2015 |
| B(mm) | 262 | 280 | 313 | 313 | 350 | 740 | 460 | 830 | 950 | 980 | 1000 |
| D(mm) | 450 | 500 | 550 | 600 | 700 | 750 | 800 | 900 | 1000 | 1100 | 1200 |
| L(mm) | 350 | 400 | 400 | 450 | 500 | 550 | 580 | 650 | 715 | 800 | 850 |
Note: The above flow rate of the working pressure of 0.7MPa, precision 5um, when the value of the resulting medium is water, different pressures, different precision and the medium, flow rate are also different.
More model for choose:
Standard single bag filter
Standard upper entry filter

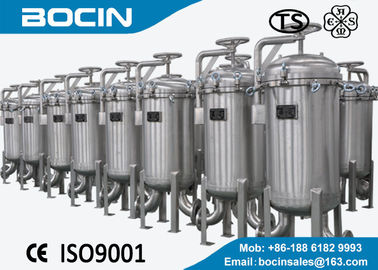

Standard multi-bag filter
Spray type bag filter
Parallel bag filter
Quick opening bag filter
Bag form:
Standard filter bag
Absolute precision filter bag
Oil removing filter bag
Food grade filter bag
High temperature resistant filter bag
