Product Name: | VS-500 Dispensing Robot/ Automatic Robot Dispenser Machine | Application: | Glue/epoxy/resin |
---|---|---|---|
Weight: | 70kg | Dispensing Size: | 500*500*100mm |
Type: | VS-500 | Motor System: | High Precision Motor |
Standard: | ROHS/SGS | Display: | LCD Teach Box |
High Light: | glue dispensing equipment,epoxy dispensing machine |
Specifications:
1. Man-machine interface, easy to operate.
2. 3 axis movement
3.1 year warranty
Model | ZM-300ED | ZM-400ED | ZM-500ED |
Working Area/mm | 300(X)*300(Y)*100(Z) | 400(X)*400(Y)*100(Z) | 500(X)*500(Y)*100(Z) |
Size/mm | 490(L)*528(W)*679(H) | 590(L)*628(W)*679(H) | 690(L)*728(W)*679(H) |
Max load Y/Z | 7kg/3kg | ||
Max move speed | 400mm/sec(XY)/200mm/sec(Z) | ||
Drive mode | Stepping motor+ belt+ precise linear guide rail | ||
XYZ Repeatability | ±0.03mm | ||
Program capacity | 999 parameter files(65535 points can be saved per file) | ||
Operation system | LCD panel /handhold programming device | ||
Motor system | Japan highly precise micro-stepping motor | ||
Movement pattern | Point to point in XYZ axis, Continuous line, arc | ||
I/O ports for extension | 4 inputs/4 outputs | ||
Power supply | AC220V 50/60Hz 0.5kw | ||
Work condition | Temperature 0-40°C;humidity 20-90% | ||
Weight | About 35kg | About 45KG | About 55KG |
Item | Unit | QTY | Remark |
Motor | kit | 3 | Micro stepping motor |
High Precision dispensing valve | pc | 1 | Optional |
Motion Controller | kit | 1 | Developed by Second automatic |
Automatic Dispensing Software | kit | 1 | Second independent R&D |
Precise Dispensing controller | kit | 1 | Optional |
Features and Function

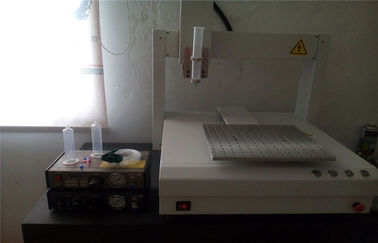

1, full automatic robot dispenser machine Operation with handheld LCD panel .It is easy to program and learn.
2, full automatic robot dispenser machine can draw points, lines, arc, and circle and, even irregular curve by consecutive interpolation and realize any 3D non planar trajectory path.
3, full automatic robot dispenser machine is of excellent teaching functions. Support inserting and group editing of array, graphical browsing,three dimensional elliptic, common graphical library.
4, full automatic robot dispenser machine MiniSD file storage device with high speed and 2G capacities can store 999 dispensing process documents
5, Glue amount, speed of glue dispensing, njecting time and halting time can be set up with parameters
6, With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7, The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8, full automatic robot dispenser machine Powerful compatibility with PC. Support importing the popular design software, like Auto CAD, Coral Draw.Together with the software Logo shop, it can generate and output all kinds of formats file, like NC, .AI, DXF, .JPG, .BMP, scanner, etc
9, full automatic robot dispenser machine is suitable for fluid glue, such as UV, AB glue, COB (black glue), white glue, EMI conductive Glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,Transparent paint, screw fixative and so on.
