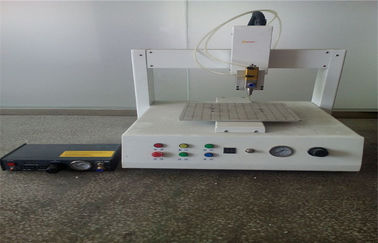

Professional Silicone Sealant Dispensing Robot With Micro - Step Precision Motor

Professional Silicone Sealant Dispensing Robot With Micro - Step Precision Motor
Professional Silicone Sealant Dispensing Robot With Micro - Step Precision Motor

Large Image :  Professional Silicone Sealant Dispensing Robot With Micro - Step Precision Motor

Product Details:
Place of Origin: China
Brand Name: VISION
Certification: ROHSSGS
Model Number: VS-500
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 6350USD
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: western Union or paypal or bank transfer
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: VS-500 Dispensing Robot/ Glue Robot & Dispenser Application: Glue/epoxy/resin
Weight: 70kg Dispensing Size: 400*400*100mm
Type: VS-500 Motor System: High Precision Motor
Standard: ROHS/SGS Display: LCD Teach Box
High Light:

glue dispensing equipment

,

epoxy dispensing machine

VS-500 dispensing robot/ glue robot & dispenser

Specifications:



1. Man-machine interface, easy to operate.

2. 3 axis movement
3.1 year warranty



model VS-500
Working Range X/Y/Z (mm):  500/500/100
Load Y-AXIS / Z-AXIS:  10/5kgs
X&Y / Z ( mm/sec ): 0.1-600/300
Resolution: 0.001 mm/Axis
Repetitive Positioning Accuracy: 0.01 mm/ Axis
Program Capacity:  At least 100 groups, each group 4000 points
Data Storage Type:  CF Card
Program Display:  Teach Pendant LCD
Motor System:  Micro-step precision motor
Control Method: PTP & CP
Interpolation Function:  3 axis ( 3D stereo space arbitrary paths can)
Programming Method:  Teaching box / PC
I/O Signals Port:  8 / 8 Outputs Inputs
External Control Interface:  RS232
Power Supply:  AC110 220V 300W
Working Temperature:  10 - 40 C
Working Relative Humidity:  20 - 90% no condensation
Dimensions (WxDxH mm):  480X600X600
Robot Weight (kg):  40kgs





Features



1: Precise stepper motor, numerical control available

2:.Apply three-axis robot to control the dispensing position to ensure high precision of glue dispensing

3: According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

4: Have air clean device,can gurrantee the material clean and dry.

5. CAD document can be imported to simplify the operation





Competitive Advantage:



We are a professional manufacturer of automatic machine for more than 10 years.We first product is automatic cutting machine,smd counter then we sale pcb separator.Glue dispenser becomes a new item that we have sold

Starting from 3 axis style glue robot,we can make four axis now.Other models glue dispeners

We can design the glue robot according to your glue,material size,shape.

Best technology support and after sale service can be guarranteed
