Product Details:
Payment & Shipping Terms:
|

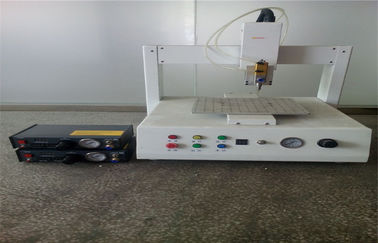

| Product Name: | OEM VS-400 Dispensing Robot/ Glue Robot & Dispenser | Application: | Glue/epoxy/resin |
|---|---|---|---|
| Weight: | 55kg | Dispensing Size: | 400*400*100mm |
| Type: | VS-400 | Motor System: | High Precision Motor |
| Standard: | ROHS/SGS | Display: | LCD Teach Box |
| High Light: | glue dispensing equipment,epoxy dispensing machine |
||
Specifications:
1. Man-machine interface, easy to operate.
2. 3 axis movement
3. Simple easy high-speed precision operation
4. 1 year warranty
| model | VS-400 |
| Working Range X/Y/Z (mm): | 400/400/100 |
| Load Y-AXIS / Z-AXIS: | 10/ 5kgs |
| X&Y / Z ( mm/sec ): | 0.1-800/5000 |
| Resolution: | 0.001 mm/Axis |
| Repetitive Positioning Accuracy: | 0.01 mm/ Axis |
| Program Capacity: | At least 100 groups, each group 4000 points |
| Data Storage Type: | CF Card |
| Program Display: | Teach Pendant LCD |
| Motor System: | Micro-step precision motor |
| Control Method: | PTP & CP |
| Interpolation Function: | 3 axis ( 3D stereo space arbitrary paths can) |
| Programming Method: | Teaching box / PC |
| I/O Signals Port: | 8 / 8 Outputs Inputs |
| External Control Interface: | RS232 |
| Power Supply: | AC110 220V 300W |
| Working Temperature: | 10 - 40 C |
| Working Relative Humidity: | 20 - 90% no condensation |
| Dimensions (WxDxH mm): | 480X600X600 |
| Robot Weight (kg): | 40kgs |
Features
1. English touch panel, easy operation.
2. Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4. The dispensing head set the micro touch switch, convenient operation; no air pressure, power can work.
Competitive Advantage:
(1) 6-year dispensing robot Manufacture Experience
(2) Quick and Safe Delivery
(3) Professional Service Team
(4) 24 hours On Line Customer Service
(5) OEM and ODM Services offered.
