|Display:||LCD Teach Box||Application:||Glue,resin,epoxy|
1. Continuous dispensing function for any irregular curve, 3-dimensional dispensing.
2. Take advanced Japanese stepper motor, higher speed and low noise.
3. With static eliminator ,can control the electrostatic within ±100V
4. Automatical dispensing compensation function of dispensing makes it more convenient to operate.
5. Area of XY arrays, rotation of translation function, antistrophe material plate, appliable to different location.

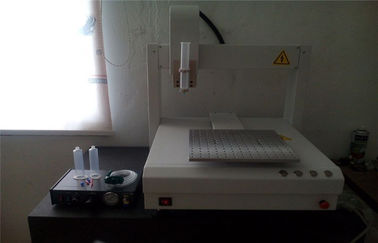

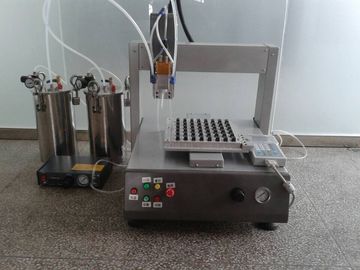

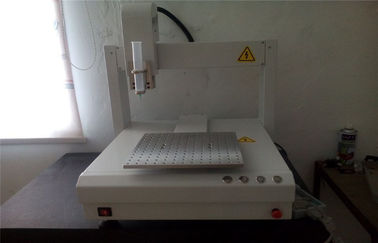

New Type VS-400 400*400cm High Precision 3 Axi Automatic Resin Dispenising Robot suit for semiconductor encapsulation, PCB parts fixed and protection, LCD glass machine encapsulation and stick, mobile phone board, speaker assembly line, battery box, auto parts gelatinization, hardware components seal, quantitative liquid filling, chip binding etc.
|Working Range X/Y/Z (mm):||400/400/100|
|Load Y-AXIS / Z-AXIS:||10/ 5kgs|
|X&Y / Z ( mm/sec ):||0.1-800/5000|
|Repetitive Positioning Accuracy:||0.01 mm/ Axis|
|Program Capacity:||At least 100 groups, each group 4000 points|
|Data Storage Type:||CF Card|
|Program Display:||Teach Pendant LCD|
|Motor System:||Micro-step precision motor|
|Control Method:||PTP & CP|
|Interpolation Function:||3 axis ( 3D stereo space arbitrary paths can)|
|Programming Method:||Teaching box / PC|
|I/O Signals Port:||8 / 8 Outputs Inputs|
|External Control Interface:||RS232|
|Power Supply:||AC110 220V 300W|
|Working Temperature:||10 - 40 C|
|Working Relative Humidity:||20 - 90% no condensation|
|Dimensions (WxDxH mm):||480X600X600|
|Robot Weight (kg):||75kgs
