500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System

China 500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System supplier
500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System supplier 500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System supplier 500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System supplier 500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System supplier 500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System supplier 500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System supplier

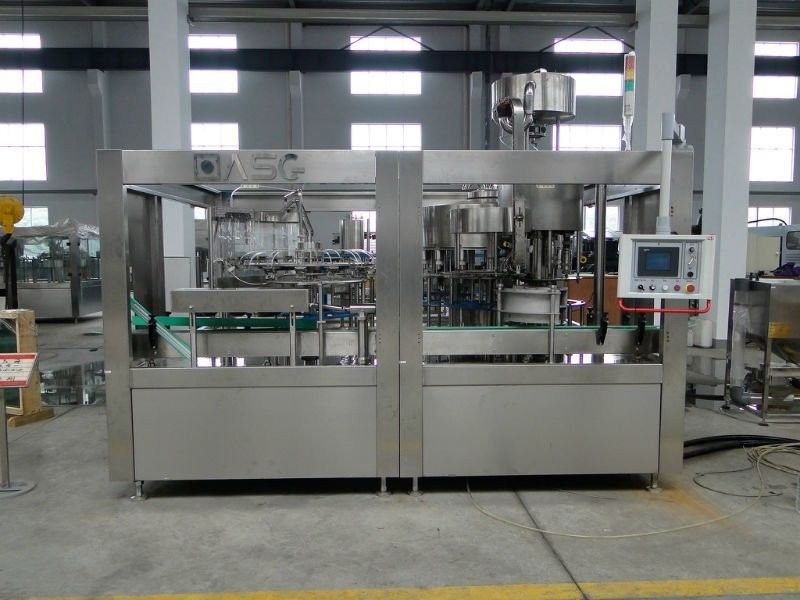

Large Image :  500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System

Product Details:

Place of Origin: China
Brand Name: ASG
Certification: CE, ISO
Model Number: XGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 60~120 working days
Payment Terms: T/T, L/C
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Automatic Grade: Automatic Production: 21000-22000BPH
Application: Pure Water, Drinking Water, Beverage, Mineral Water, Juice Driven Type: Electric
Feature: Blowing Filling Capping Filling Capacity: 500ml
Name: Pet Bottle Filling Machine



500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System



Applications:




The water filling manufacturing line is mainly used in the non-carbonated drink filling operation, like pure water, mineral water.





Technique Parameters:




Model

Capacity(500ml)

Main motor power

Dimension(mm)

Weight(kg)

XGF50-50-12

21000-22000

7.5

4720*3545*2700

6500







Main features:




1. This type machine has compact structure,fine operation system,easy operation and high degree automation.
2. Adopting air conveyor and inlet bottle track-wheel directly connection technology, cancel inlet bottle screw and conveying chain, easily to change other size bottle. Bottle goes through air conveyor into filling machine and then transmitted to washing machine by inlet bottle steel track-wheel.
3. The parts connected with material all adopt exported high quality stainless steel, no art design blind corner, easily to be cleaned.
4. Adopting high accuracy, fast speed rated volume filling valves without less, ensuring high quality filling.
5. Capping heads adopt constant torque device, ensuring capping quality.
6. Adopting high efficient cap sorting system with perfect cap feeding and protecting device.
7. It no needs to adjust equipments height when changing other size bottles, just need to change track-wheels.
8. Filling adopts gripping bottle neck inlet technology , avoiding twice bottle mouth pollution.
9. There is perfect overload protecting device, which can effective protect machine and operator.
10. Controlling system has water level auto controlling,lack caps checking ,auto stop washing and counting functions.
11. Washing bottle adopts UAS spraying company high efficient cleaning spraying nozzle, which can clean almost everywhere.
12. Main electrical components,electric control valve,inverter and so on all adopt exported parts, ensuring complete machine high quality specification.
13. Air system all components all adopt international famous brand products.
14. Whole machine adopts advanced touch screen controlling, which can achieve human-machine dialogue.



500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System



500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System

500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System



500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System

500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Machine System




ASG Advantage:


1. Competitive price & good quality
2. In-time delivery time
3. Qualified sea worthy wood case
4. Quick & effective service
5. 1-year warranty, life-time service
