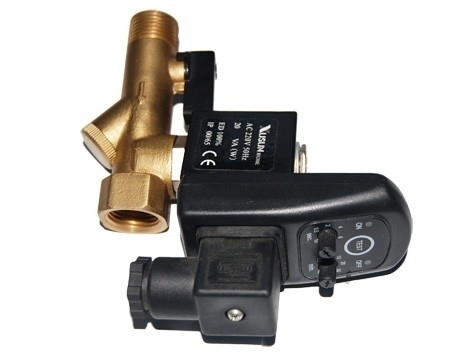

1/2 Inch Air Compressor Electric Auto Drain Valve with Timer 2 Position 2 Way 220V

China 1/2 Inch Air Compressor Electric Auto Drain Valve with Timer 2 Position 2 Way 220V supplier
1/2 Inch Air Compressor Electric Auto Drain Valve with Timer 2 Position 2 Way 220V supplier 1/2 Inch Air Compressor Electric Auto Drain Valve with Timer 2 Position 2 Way 220V supplier

Large Image :  1/2 Inch Air Compressor Electric Auto Drain Valve with Timer 2 Position 2 Way 220V

Product Details:

Place of Origin: China
Brand Name: JIUBEI
Certification: SGS
Model Number: 2" & 4"

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: US$80-US$200/PC
Packaging Details: carton
Delivery Time: 4 working day
Payment Terms: 100% in advance , T/T, Western Union or Paypal
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Type: Automatic Drain Valve Model: Any Model
Port Size: 1/2" & 3/4" Weight: 2kg
Warranty: Half A Year Application: Industrial Usage, Water Industrial Usage,



1/2 Inch Electric Air Compressor Automatic Drain Valve With Timer 2 Position 2 Way 220V





Description



Maximum working pressure:1.6MPa

Automatic; free maintenance;

Waterproof(IP65), Shake-proof, Energy-saving, Environment-friendly;

Forging brass valve, flow aperture of 4 mm ;

Easy installation;

Working Voltage: DC 24V; AC 110V; AC220V

Weight: 600g

Size 122×93×97mm






1/2 Inch Air Compressor Electric Auto Drain Valve with Timer 2 Position 2 Way 220V



Specication of the Timer



Time interval ( OFF )

0.5--45 minutes

Discharge time ( ON )

0.5--10 seconds

Manual test button

micro switch

Power supply voltage

24-380V AC / DC 50 / 60Hz

The largest current consumption

4mA

Ambient temperature

-40 °C to 60 °C

Water proof grade

IP65

Shell material

Flame retardant ABS plastic

Electrical connection

DIN43650A

Indicator lamp

LED indicating power on / off



Type

Two two direct-acting valve

In / out port size

1/2"

Aperture

4 mm

Maximum working pressure

1.6Mpa

Maximum Media temperature

90°C

Valve Material

Forging brass,

Insulation class

H

Protection grade

IP65

Voltage

24VDC/110VAC/220VAC

Voltage range

10%

  • Two position, two way, normal close switch, magnetic solenoid water valve.
  • Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
  • Used to control automatically the liquid and gas in the pipeline








Part Number



Air filter 1621054699 1621574300 1614874700 1613610500
1621574300 1621054700 1621574200 1030097900
2914930600 2903101200 2903101200 1613800400
Oil fiter 1202626301 1202626301 1617703909 1617704203
89295976 42855429 42888214 39588470
55305910 55175910 56645910 P-CE13-517
Oil separator 2901194402 1622035101 1613901400 2252631300
39751391 92754688 39894597 42841247
02250109-319 02250109-321 250034-130 02250125-500
Temperature sensor 1089057407 1089057444 1089057464 1089057455
39560628 37952355 39921705 85652535
A11507074 09Q060G1936 100002946 A10630674
Pressure sensor 1089057565 1089057535 1089057574 1089057564
39428305 39875539 39877618 39929435
88290003-806 250039-910 A98612-120 98612-122
Control Panel 1900520011 1900520001 1900070105 1900071001
1900071002 1900071281 1900071292 1900071031
23009848 39825815 92948884 39842786
Gear set 1622311029/30 1622311033/34 1622311035/36 1622311043/44
54522438 39109517 39817465 39755368
152-92700/92800 02250046-882 1622077027/28 39805262
Safety valve 1092001919 1092001962 2205400409 1092001929
72062185 22431761 22431787 22431779
88290005-480 88290005-482 88290005-468 88290005-469
Solenoid valve 1089062140 1089062101 1089943924 1089943926
22282529 39137492 54579248 93470235
1000090003 250038-674 100012563 100004670
Intake valve 1622316287 1622348880 242040707P 1613900800
1613814400 1622515680 1622171380 54747899
2250073-277 02250083-783 23120942 1901002653
Repair kits 2901050300 2901021200 2901007700 2901050301
1619733300 1622375980 1622375980 2901146400
250018-262 250019-444 250018-456 250018-262
Oil-free spare part 22699861 2906038200 2906037700 2906066000
2906059200 1089943921 2906017500 1089059021
Air end 1616714693 1616728190 1616728180 1616551700
2989016400 1616657583 1616710390 39230743
Used Compressor Model GA37&vsd GA45 GA55 GA160
ZT110 ZT22 ZT25  CSD102
