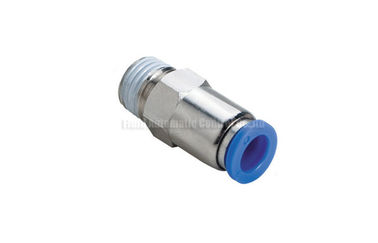

1/2" NPT One Way Check Valve Fitting , Non-return Tube Fitting
One way check valve fitting brass nickle plated material tube size 4mm~12mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric thread,e.g PCVC8-02
Quick Detail:
* one way check valve fitting
* body material brass nickle plated
* housing material PBT
* lock claw material stainless steel,tight and stable
* plastic sleeve,black colour or blue colour,oval or round shape for option
* fast installation,easy and flexible connecting,saving space
* leak proof coated on thread to ensure good sealing peformance
* threads available in G,PT,NPT,METRIC
* thread size 1/8”,1/4”,3/8”,1/2”
* tube size available metric 4,6,8,10,12 inch 5/32,3/16,1/4,5/16,3/8,1/2
* one way direction,non-return,maintain the output pressure at constant level
Applications:
One way check valve fitting used widely in metallurgy,oil industrial,chemical,textile,aviation,mechanical automation,transporation,electronics,medicine equipment,teching equipment as airline connector
Specifications:
|
Tube Outer Dia |
||||||
|
(Metric Size) |
||||||
|
Code |
4 |
6 |
8 |
10 |
12 |
14 |
|
DIA |
Ø4 |
Ø6 |
Ø8 |
Ø10 |
Ø12 |
Ø14 |
|
(Inch Size) |
||||||
|
Code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Ø5/32 |
Ø3/16 |
Ø1/4 |
Ø5/16 |
Ø3/8 |
Ø1/2 |
|
Thread Type and size |
||||||
|
Taper Thread(R PT ) |
||||||
|
Code |
01 |
02 |
03 |
04 |
06 |
|
|
DIA |
R1/8 |
R1/4 |
R3/8 |
R1/2 |
R3/4 |
|
|
G Thread |
||||||
|
Code |
G01 |
G02 |
G03 |
G04 |
G06 |
|
|
DIA |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
|
|
NPT Thread |
||||||
|
Code |
N01 |
N02 |
N03 |
N04 |
N06 |
|
|
DIA |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
|
|
(Metric Size) |
||||||
|
Code |
M5 |
M6 |
M8 |
M10 |
|
|
|
DIA |
M5X0.8 |
M6X1 |
M8X1 |
M10X1.25 |
|
|
|
MODEL |
ΦD |
R |
L1 |
L2 |
Φp |
|
|
PCVC 4-M5(B) |
4 |
M5 |
3.5 |
31 |
10 |
10 |
|
PCVC 4-M6(B) |
4 |
M6 |
4 |
31.5 |
10 |
10 |
|
PCVC 4-01(B) |
4 |
R1/8 |
7.5 |
25 |
10 |
10 |
|
PCVC 6-01(B) |
6 |
R1/8 |
7.5 |
31 |
12 |
12 |
|
PCVC 6-02(B) |
6 |
R1/4 |
9.5 |
33 |
12 |
14 |
|
PCVC 8-01(B) |
8 |
R1/8 |
7.5 |
32.8 |
14 |
14 |
|
PCVC 8-02(B) |
8 |
R1/4 |
9.5 |
34.8 |
14 |
14 |
|
PCVC 10-03(B) |
10 |
R3/8 |
10.5 |
41 |
17 |
17 |
|
PCVC 10-04(B) |
10 |
R1/2 |
13.5 |
43 |
17 |
21 |
|
PCVC 12-03(B) |
12 |
R3/8 |
10.5 |
42.5 |
20 |
21 |
|
PCVC 12-04(B) |
12 |
R1/2 |
13.5 |
44.5 |
20 |
21 |
|
MODEL |
ΦD |
Φp |
L |
|
PCVU 4 |
4 |
13 |
47 |
|
PCVU 6 |
6 |
13 |
46 |
|
PCVU 8 |
8 |
15 |
51 |
|
PCVU 10 |
10 |
19 |
62 |
|
PCVU 12 |
12 |
21.5 |
64 |
|
MODEL |
R |
Rc |
L1 |
L2 |
L |
|
|
PCVF 01-01(B) |
R1/8 |
G1/8 |
7.5 |
8.5 |
25.2 |
14 |
|
PCVF 02-02(B) |
R1/4 |
G1/4 |
9.5 |
11 |
29.8 |
17 |
|
PCVF 03-03(B) |
R3/8 |
G3/8 |
10.5 |
12 |
33.5 |
21 |
|
PCVF 04-04(B) |
R1/2 |
G1/2 |
13.5 |
14 |
37 |
24 |
