UPVC / PVC Plastic Check Valves Swing Type Socket Connection , DIN ANSI JIS Standard

China UPVC / PVC Plastic Check Valves Swing Type Socket Connection , DIN ANSI JIS Standard supplier

Large Image :  UPVC / PVC Plastic Check Valves Swing Type Socket Connection , DIN ANSI JIS Standard

Product Details:

Place of Origin: China
Brand Name: DINAI
Certification: ISO
Model Number: H42X

Payment & Shipping Terms:

Minimum Order Quantity: 10 Sets
Price: $2~$35
Packaging Details: Wooden Case
Delivery Time: 7-15 Days
Payment Terms: T/T; L/C
Supply Ability: 1000~2000 Sets/Month
Contact Now
Detailed Product Description

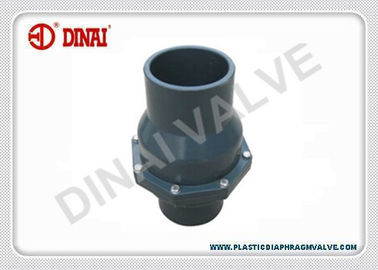

UPVC / PVC Plastic Check Valves Swing Type With Socket / Thread Connection





Material: UPVC, CPVC,PP-GF,

Size: DN25(1”)~DN150(6”)

Standard: ANSI, JIS, DIN,NPT,BSPT

Connection: socket/Thread

Pressure rating: PN10



UPVC / PVC Plastic Check Valves Swing Type Socket Connection , DIN ANSI JIS Standard

No. Part name Material
1 Body UPVC, CPVC,PP-GF
2 Ring EPDM
3 Disc core Steel
4 Disc UPVC, CPVC,PP-GF
5 Seal ring EPDM
6 Screw SS304
7 Cover UPVC, CPVC,PP-GF
8 Body UPVC, CPVC,PP-GF



Size de D L1 L W
DN25(1”) 32 46 27 107 75
DN32(1-1/4”) 40 56 34 130 110
DN40(1-1/2”) 50 66 38 147 120
DN50(2”) 63 81 39 162 140
DN65(2-1/2”) 75 95 45 198 148
DN80(3”) 90 110 55 233 170
DN100(4”) 110 129 75 295 198
DN150(6”) 160 182 119 428 281



UPVC / PVC Plastic Check Valves Swing Type Socket Connection , DIN ANSI JIS Standard
