Industry Epoxy Dispensing Static Mixer Nozzle In Construction / Waterproof

China Industry Epoxy Dispensing Static Mixer Nozzle In Construction / Waterproof supplier

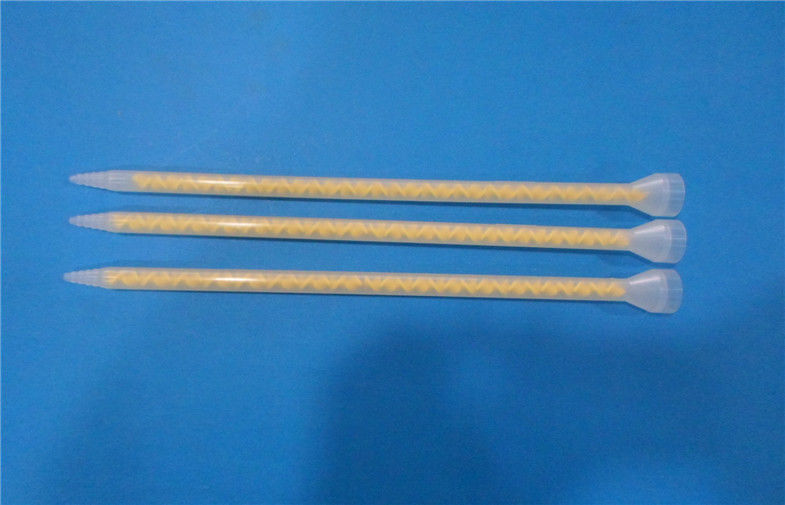

Large Image :  Industry Epoxy Dispensing Static Mixer Nozzle In Construction / Waterproof

Product Details:

Place of Origin: China
Brand Name: VISION
Certification: CE/ROHS
Model Number: VMA06.24

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: T/T ,Western Union, Paypal, bank transfer
Supply Ability: 500000pcs per month
Contact Now
Detailed Product Description
Product Name: 10-24 Static Mixer Nozzle.mixing Nozzle.static Mixer Nozzle Type: 10.24
Mixer Type: Static Mixer Standard: CE/ROHS
Color: White Material: Plastic
Length: 103mm Elements: 17s
Out Diameter: 13.5mm



10-24 static mixer nozzle.mixing nozzle.static mixer nozzle



Specifications:



Specifically for Plastic Adhesive Dispensing static mixer for High quality mixing nozzle , static mixer nozzle for building of liquid from the AB plastic tube into the mixing tube in the tube current doing cutting restructuring exercise which play a mixed role. 2.MA for 1:1 and 2:1, MX fit 4:1 and 10:1 for the two-component liquid mixture blended to provide a low-cost solution using static mixing tube can save labor, reduce waste, improve productivity and dramatically reduce production costs. 3.The product is used in electronics manufacturing, electronics manufacturing, civil construction, automobile manufacturing, gift decoration and other industries, is widely used in a variety of two-component adhesives, fillers mixed (including epoxy, silicone course, this can also be mixing tube applied in any two-component liquid epoxy. The Mixng tips attach to the Dispensers. The patented mixing tips keep parts A and B of the adhesive separate until they meet inside the mixing tips. As a result of this design, the static mixer prevents cross contamination and curing of the A and B components at the interface (where the dispenser and static mixer connect.) This eliminates the common unwanted curing problems that typically occur at that interface when using  plastic Adhesive Dispensing static mixer for AB glue cartridge



size inside diameter(mm) outside diameter(mm) element(s) length(mm) top ID(mm) volume(ml)
vme/s05-24 5.4 8 24 148.5 1.5 2.3
vme/s05-32 5.4 8 32 188 1.5 2.8
vme/s06-24 6.3 10 24 186 1.8 4
vme/s06-32 6.3 10 32 235 1.8 6.5
vme/s06-48 6.3 10 48 334 2.4 10
vme/s06-56 6.3 10 56 375 2.4 10.8
vme/s08-24 8 12 24 223 2.4 8.6
vme/s08-32 8 12 32 287 2.4 11.6
vme/s10-12 10 13.5 12 156 3 9.6
vme/s10-18 10 13.5 18 185 3 12.5
vme/s10-24 10 13.5 24 275 3 16
vme/s10-32 10 13.5 32 351 3 23
vme/s13-24 13 16 24 293 4 27
vme/s13-32 13 16 32 379 4 34.5








The Feature



1. On-demand mixing and dispensing of two- component reactive materials

2. Accurate, efficient metering in precise volumetric mix ratios

3. Ratios (by volume) available include 1:1, 2:1, 2.5:1, 3:2, 4:1, 4:5, 5:1, 8:1, 10:1 and 25:1

4. plastic mixing pom tube  ,PP construction mixer tube, spiral Static wide range of sizes (200 ml to 1500 ml)

5. Handles wide range of viscosities

6. Improved shelf-life for highly reactive or moisture-sensitive materials

7. Motionless mixer blends only the material needed

8. Minimizes waste

9. Easy To Use plastic mixing pom tube  ,PP construction mixer tube, spiral Static

10. Uniform Material application





Our Services



We will provide you best quality for Caulking Gun , best service no matter big or small order

Warranty: all our products have one year warranty

We will send you free with next order if any defect products which made by us

Welcome your any inquiry and any doubts.Welcome to visit our factory
