85mm high torque 3 phase hybrid stepper motors anti - rust shaft

China 85mm high torque 3 phase hybrid stepper motors anti - rust shaft supplier

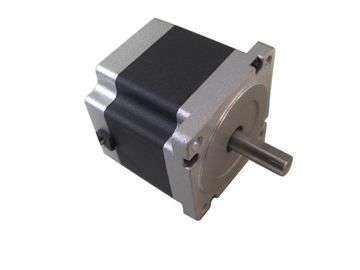

Large Image :  85mm high torque 3 phase hybrid stepper motors anti - rust shaft

Product Details:

Place of Origin: China
Brand Name: Sherry Motors
Certification: TS-16949/RoHS/ISO14001
Model Number: 85BYGH350

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: USD29.00-49.00 per unit
Packaging Details: Carton or negotiation
Delivery Time: 45 working days after received your payment
Payment Terms: negotiation, , T/T
Supply Ability: 20,000pcs/month
Contact Now
Detailed Product Description

85mm high torque 3-phase hybrid stepper motors anti-rust shaft with 1.2 step angel

  1. Well machine-turned front and rear endbells with surface-treatment to well endure the extreme working conditions.
  2. The stator lamination stacks are powder-coated in black for anti-rust and anti-moisture performance.
  3. Both rotor and stator laminations are formed by high-precision and auto-stacking punching machines to fundamentally improve the motor performance in reliability as well as in step angle accuracy.
  4. The motor body length is flexible from 68mm to 155mm to allow the application designer more scientific freedom to choose the specific holding torque for his or her end applications.
  5. The hybrid stepper motors are having a wide range of holding torques varying from 2.3N.m to 6.8N.m, which also can be slightly changed for your OEM designs.
  6. Currently, 4-lead, 6-lead and 8-lead of winding options are available to make the hybrid stepper motors positvely match with different applications among all walks of life.

Applications:
   They are widely applied to adhesive dispensing equipment, plastic dropping machines, coil winding machines as well as diamond grinding machines.



Specifications:

Model

Step Angle (°)

Motor Length L (mm)

Rated Voltage (V)

Rated Current (A)

Phase Resistance  (Ω)

Phase Inductance  (mH)

Holding Torque (N.m)

Rotor Inertia (g.cm2)

Motor Weight  (Kgs)

85BYGH350A-001

1.2

68

4

4

1

4

2.3

1100

1.65

85BYGH350A-002

1.2

68

7.4

1.75

4.25

12.3

2.3

1100

1.65

85BYGH350B-001

1.2

97

4.6

5.8

0.8

3

4.5

2320

2.7

85BYGH350B-002

1.2

97

10.8

2

5.4

23

4.5

2320

2.7

85BYGH350C-001

1.2

127

13

5.2

2.5

13.5

6.8

3300

3.8










Dimensions:

(Unit=mm)

85mm high torque 3 phase hybrid stepper motors anti - rust shaft
