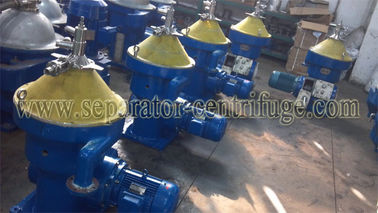

Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge

Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge
Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge

Large Image :  Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge

Product Details:
Place of Origin: China
Brand Name: Peony
Certification: CCS
Model Number: PDSD1500-B1103Z
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export packing
Delivery Time: 45days
Payment Terms: TT,.LC
Supply Ability: 100sets per month
Detailed Product Description
Product Name: Fuel Handling System Discharging Type: Part Discharging
Diesel Recommended Processing: 1600L/h Operation Type: Self-cleaning
Standard Collocation Of Control: High Temperature, Low Pressure, Auto Temperature Adjust Size(LXWXH): 1050MMx1000MMx1550MM
High Light:

fuel handling systems

,

fuel oil system

Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge



Description:



Marine oil separator is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.It is divided into 2phase solid-liquid separator and oi-water-impurity 3phase separator.They are workable in land and ship,we have the CCS certificate to certify its function and usage. There are different discharge types of the oils,manually,partial,fully discharged,variable discharge etc which depends on the different materials.commonly,we define the capacity as density of 0#  diesel oil ,and we have a chart to help you find out the exact processing capacity of your needs. We are not only provide the single oil separator,but also the whole unit containing the pumps,valves,heats,pipes and so on.





Competitive Advantages:

  •  Overload over heat protection
  •  High rotating speed,
  •  accurate dynamic balancing,
  •  long time with low vibration,
  •  safety and security.
  •  CCS certificate
  •  Continuous working

Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge 0





Main Technical Specification:



Discharging type

Part discharging

Max capacity(L/h)

Diesel recommended processing

1600

SAE30/40 Lubricating oil is recommended



800

Operation type

Self-cleaning

Standard collocation of control

High temperature, low pressure, auto

temperature adjust,including the

comprehensive alarm

Size

LXWXH(mm)

1050x1000x1550





The whole unit consists of:



1. Separator     2. Screw pump    3. Electric control box           4. Steam heater

5. Temperature adjusting valve    6. Integral heat ball valve       7. Steam trap valve

8. Temperature sensor         9. Pneumatic Three-way valve      10. Stop-check valve

11. Oil filter       12. Vacuum gauge       13. Pressure gauge      14. Air pressure reducing valve

15. 3/2 Solenoid valve          16. Ball valve          17. Brass filter ball valve

18. Water pressure reducing valve       19. 2/2 Solenoid valve      20. Pressure switch

21. moisture sensor      22. Skid





Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge 1




Principle and structure



Disc separator is vertical centrifuge. The drum is installed on the upper side of the vertical shaft. Driven by the motor, it will rotate at a high speed through the gearing. Inside the drum there is a group of dish parts overlaying each other – disc. There is very small gap between the disc. Suspension (or emulsion) is fed into the drum through the inlet in the middle of the drum. When the suspension (or emulsion) flows through the gap between the disc, under the action of the centrifuge, the solid particles (or droplets) go down to the disc in the formation of sediment (or liquid layer). Along the disc surface, the sediment slides out of the disc and accumulates at the part with the largest diameter inside the drum. After the separation, the liquid is discharge out of the drum from the drain outlet. The role of the disc is to reduce the sediment distance of solid particles (or droplets) and enlarge the sediment area of the drum. With the disc inside the drum, the capacity of the separator is improved greatly. The solid gathering inside the drum is manually removed by taking apart the drum after power off, or discharges from the drum through the slag-off part with the separator power on.





Specification:



Condition for mineral oil separation and actual capacity (refer to the chart)





Oil types

Fuel oil

Lubrication oil

   Fuel oil

      Heavy fuel oil

SAE30,40

Detergence

oil

Steam

turbine

oil



Kinematical

viscosity

(mm2/s)

1.9-5.5

5.5-24

120



180



100-120

61.2-

74.8

40℃

50℃

40℃

40℃

Density/

(kg/m3)(20℃)

<900

900-991

880-900

<900



Separating

temperature

(℃)

Normal temperature,40-60best

90-98

80-95

Recommended

capacity(l/h)

1950

1500

1050-

1125



675-

750



750-900

375-450

1200-1275

If you have special requirement, Please connect with us.





Technical analysis:



Peony's Disc separator technology comparison with foreign companies



No.

Technical Content

Peony’s Marine Disc Separator

  Oversea famous brand Disc

Separator

    1

The performance index of material

Viscidity(380 ~700 cSt/50℃) density(1010kg/m3)

Viscidity(380 ~700 cSt/50℃) density(1010kg/m3)

    2

Capacity

1500~8000L/h

1500~8000L/h

    3

System integration

Standardized, modular

Standardized, modular

    4

The transmission system

   Highspeed flat belt

    + friction coupling

Highspeed flat belt

+ friction coupling

    5

Drum structure

"No gravity ring"

+ full hydraulic discharge mode

"No gravity ring"

+ full hydraulic discharge mod





    6





Full automatic control level

Fulfill online detection,

real-time monitoring,

intelligent feedback control

Meet the requirements of ship

with unmanned engine room

Fulfill online detection,

real-time monitoring,

intelligent feedback control

Meet the requirements of ship

with unmanned engine room

7

Moisture sensors

capacitance(the same as

Westfalia)



capacitance



    8

Design of calculation method

Finite element analysis(Structure design and the

 internal flow field analysis

of drum)

Finite element analysis(Structure design

and the

 internal flow field analysis

of drum)

 9

Drum material

DSS, Special stainless steel

DSS, Special stainless steel

10

Belt

Super seamless ring belt

Super seamless ring belt







Value Analysis:



1. According to the requirements of each classification society, all modules are equipped with oil leak alarm

 and high temperature alarm.

2. Oil.hydraulic,pneumatic control part adopts the Brand Baode (Germany).

3. Heater adopts brand SWEP (Germany).

4. Pressure control adopts Korean products or  products

 5.  Screw pump is used instead of gear pump.

6. All equipped with automatic temperature control device (Made by the RTK production in Germany or

made in China)

7. The main electrical components of standard electrical control box are produced by Schneider

company while PLC is produced by Siemens or Mitsubishi.

8. The complete sets referred above are all Peony's production of automatic Standard Controls and

 we certainly

can modify the configuration

list according to customers’ specified requirements.





Application:



Mineral oil industry: purification of fuel and lubricating oil used on main engine for vessels, land diesel engine, power plants, etc.

Self Cleaning Fuel Handling Systems / 3 Phase Industrial Centrifuge 2





Guarantee:


Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
