Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve

China Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve supplier
Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve supplier Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve supplier Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve supplier

Large Image :  Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve

Product Details:

Place of Origin: China
Brand Name: Tiandi
Certification: Double Acting Hydraulic
Model Number: TDDL

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: US $120.00 – 230.00 / Set
Packaging Details: Packed in carton boxes ,and then wooden pallets
Delivery Time: 25 working days after advance payment received
Payment Terms: T/T
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: 8 Stations Hydraulic Power Units Working Pressure: 180bar
Size Of Oil Port: G3/8” Tank Size: From 4L To 12L
Valve: Directional Valve Flow Rate: From 2L To 8LPM
Voltage: DC24V Mounting Type: Horizontal

8 stations Hydraulic Power Units





This Hydraulic Power Unit is to operate double acting cylinders, complete with 8pcs of CETOP 03 solenoid directional Valves.
DC Hydraulic Power Unit.
DC24V 1.6Kw electric motor
2.1cc/r gear pump.

25Litres square steel tank with drain plug.
Hydraulic Power pack complete with suction filter, return oil pipe and air breather.
Mounting:  Horizontal Mounting.
Max pressure: 2000PSI.
Relief valve: RV2-08.  set pressure 2000PSI, but adjustable from 50-210 bar as standard for each power pack..
Flow Rate: 5 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :1/4"BSP
Hydraulic Power Units suitable for all kinds of double acting Hydraulic cylinders .



Technical Details

Motor

DC24V 1.6Kw

Duty

S3

Pump (cc/r)

0.75  1.6  2.1  2.5  3.2  4.2  4.8  5.8  7.0

Oil Tank(L)

Plastic or Steel:  2  4  7  8  11  13. etc …

Max. Pressure

210bar

Flow Rate

2LPM to 8LPM

Oil Port

G3/8”

Valve

8 pcs Directional Valve

Tank

Steel.8L





Applications:


CNC. TRUCK.

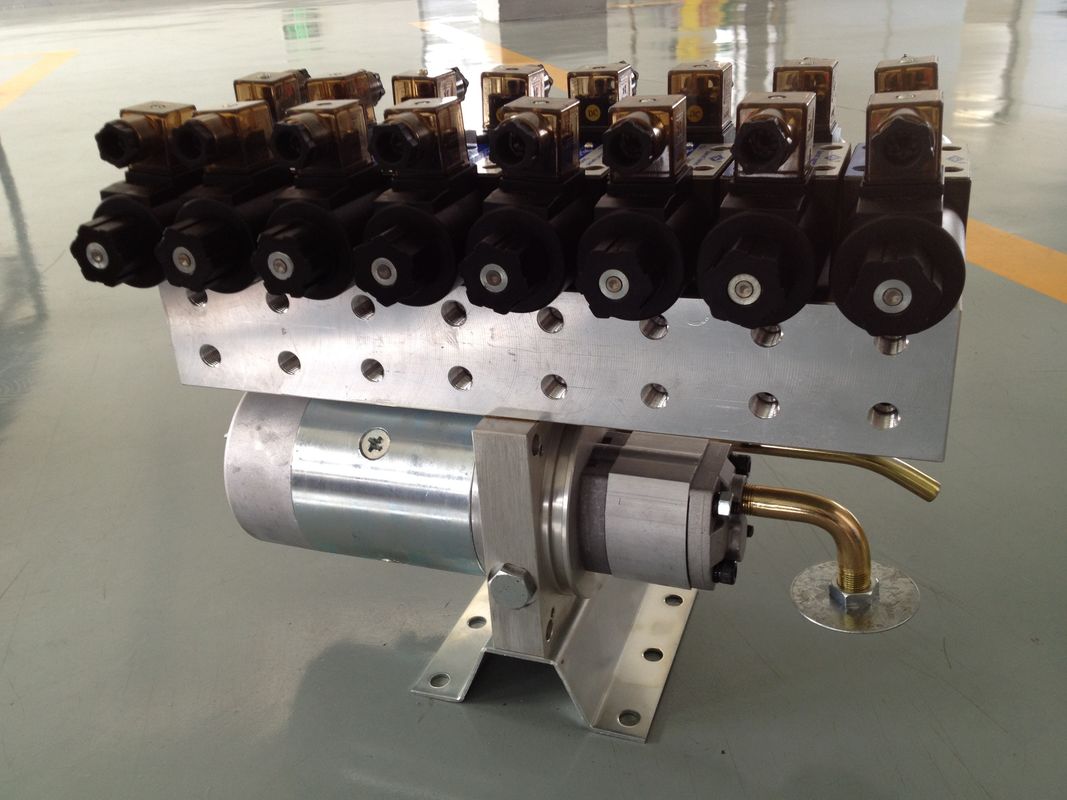

Hydraulic Power Unit Photos:



Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve



Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve







Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve Drawing:

Customized Horizontal 8 Stations 24V Hydraulic Power Units With Directional Valve



Competitive Advantage:


1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
