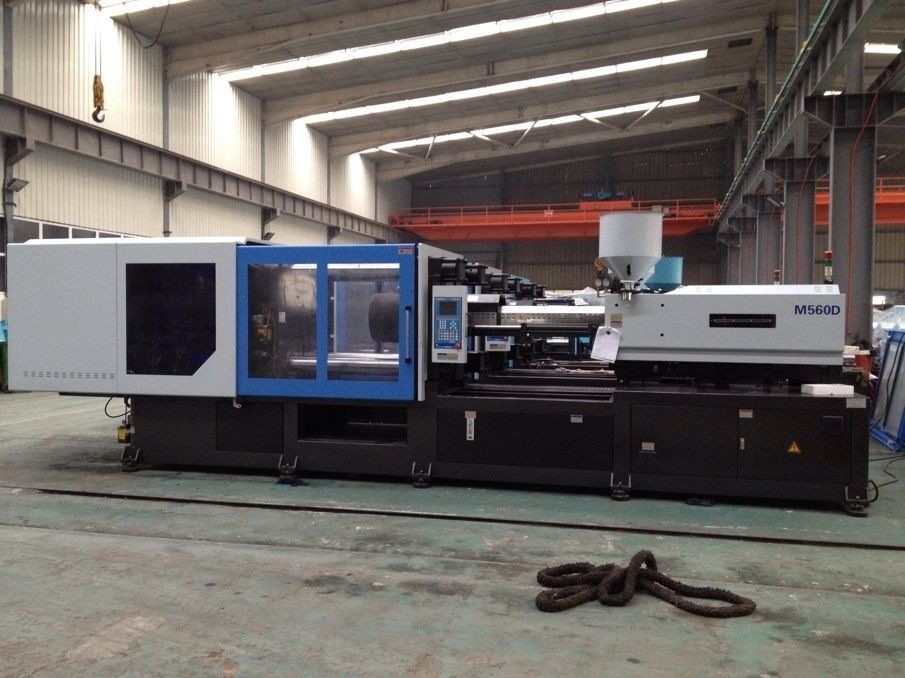

20L bucket fast cycle Plastic Injection Moulding Machine power saving

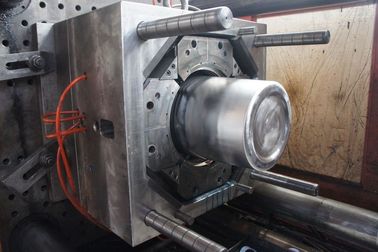

Cycle time for 20L bucket body is 18-30sec
Machine using fast cycle and fully automatic
T-slot makes the adjustment easier, compare with the screw adjustment, it has better adaptability and longer life-span
Optional function
COMPONENT
| COMPONENT | BRAND&ORIGINAL | ||
| hydraulic system | Servo | ||
| hydraulic motor | INTERMOT-ITALY-CHINA | ● | |
| servo motor control system | HUICHUAN/PHASE-CHINA | ● | |
| hydraulic pump | fixed Pump | VICKERS OR YUKEN | / |
| gear pump | SUMITOMO-JAPAN | ● | |
| hydraulic direction valve | NORTHMAN-TAIWAN | ● | |
|
propotional flow control valve&propotiona l pressure control valve |
HNC-TAIWAN FOR BIG MACHINE, SMALL MACHINE USE DONGFENG-CHINA |
/ | |
| mould adjust hydraulic motor | INTERMOT-CHINA | ● | |
| hydraulic safety valve | NORTHMAN-TAIWAN | ● | |
| electric system | |||
| computer/controller | TECHMATION-TAIWAN | ● | |
| relay | SCHNEIDER-GERMANY | ● | |
| main switch | LS-KOREA | ● | |
| linear transducer | GEFRAN-ITALY | ● | |
| limited switch | PANASONIC-JAPAN | ● | |
| breaker | CHENTAI-CHINA | ● | |
| electric motor | ZHONGDA-CHINA | / | |
| others | |||
| High pressure hydraulic pipe | GOODYEAR-USA | ● | |
| seals | VALQUA-JAPAN | ● | |
| pressure meter | Tecsis-USA | ● | |
| automatic lubrication | SL-CHINA | ● | |
| screw | JINGXING-CHINA 38CrMoAlA | ● | |
Detailed Product Description
Injection molding machine adapt the fast & reliable linear motion, equiped with servo control energy saving system, with our experienced technology,we are dedicated to provide the best solutions for the precise injection products for you!
SPECIFICATION
| SPECIFICATION | M-560 | ||||
| ITEM | A | B | C | D | |
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 75 | 80 | 85 | 90 |
| SCREW L/D RATIO | L/D | 23 | 22 | 21 | 19.5 |
| SHOT VOLUME(THEORETICAL) | ㎤ | 1811 | 2061 | 2327 | 2608 |
| INJECTION WEIGHT(PS) | g | 1666 | 1896 | 2140 | 2400 |
| INJECTION PRESSURE | Mpa | 190 | 168 | 148 | 132 |
| INJECTION RATE | g/sec | 306 | 348 | 393 | 441 |
| SCREW SPEED | rpm | 160 | |||
| CLAMPING UNIT | |||||
| CLAMP TONNAGE | KN | 5600 | |||
| TOGGLE STROKE | mm | 780 | |||
| MIN.MOLD HEIGHT | mm | 300 | |||
| MAX.MOLD HEIGHT | mm | 820 | |||
| SPACE BETWEEN TIE BARS | mm | 830X780 | |||
| EJECTOR TONNAGE | KN | 120 | |||
| EJECTOR STROKE | mm | 230 | |||
| EJECTOR NUMBER | PC | 13 | |||
| OTHERS | |||||
| MAX.PUMP PRESSURE | Mpa | 16 | |||
| HEATER POWER | KW | 32 | |||
| PUMP MOTOR POWER | KW | 45 | |||
| OIL TANK CUBAGE | L | 700 | |||
| MACHINE DIMENSION(LxWxH) | M | 8.15X1.95X2.5 | |||
| MACHINE WEIGHT | T | 17.5 | |||
Selling points
Double oil tank design:because short the distance for the oil return line ,the hydraulic system response is getting more quicker. In the meantime,this design will reduce the oil temperaure ,protect the oil seal.
Using bridge design for the injection unit,avoid material leakage if the injection unit is not stay in the same level.
Adopt double injection cylinder ,more faster and powerful.avoid any injection less or injection not in the center by single injection cylinder
Screw barrel material using top 3 supplier in China
Offer 2 hydraulic core pull in the valve panel for future installation Products collection hopper can be dis-assembled and install convenyor in future Install the linear transducer for clamping near the crossing,not easy to get damaged by clearning or maintaiance.
Platen drawing
