Product Details:
Payment & Shipping Terms:
|
| Cage Material: | Nylon/Brass/Metal Cage | Number Of Row: | Single Row/Double Row |
|---|---|---|---|
| Seals Type: | OPEN | Type: | Thrust Ball Bearing |
| Bearing Material:: | Chrome Steel|Carbon Steel|Stainless Steel | Clearance: | C0|C2|C3|C4|C5 |
| Precision Level: | P0|P6|P5|P4|P2 | Dimension: | 100*150*38mm |
| Bearing Type:: | Thrust Ball Bearing | ||
| High Light: | double direction thrust ball bearing,thrust washer bearing |
||
Chrome Steel Thrust Ball Bearing C4 / C5 For Motorcycle , 100 x 150 x 38mm
Quick Detail:
1) Thrust Ball Bearing 51220 51220M 51220E
2)Bearing Material: Chrome steel
Cage: Nylon/Brass/Metal Cage
3) Abundant Stock &Quick Delivery
4)Brands: MBY or OEM
Specifications:
|
Model Number |
51220 51220M 51220E |
|
Brand Name |
MBY or OEM |
|
Dimension |
100*150*38mm |
|
Type |
Thrust Ball Bearing |
|
Seals Type |
OPEN |
|
Material |
Chrome Steel ,Carbon Steel, Stainless Steel |
|
Cage material |
Brass/Metal/Nylon |
|
Clearance |
C0,C2,C3,C4,C5 |
|
Vibration |
Z1V1,Z2V2 and Z3V3 |
|
Precision Level |
P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9) |
|
Number of Row |
Single Row/Double Row |
|
Guarantee |
One year. |
|
Certifications |
ISO 9001:2008 |
|
Package |
Box, Carton, Wooden Case, Plastic Tube or Per buyers requirement . |
|
Place of Origin |
China (Mainland) |
|
MOQ |
10PCS |
|
Service |
(1) Prompt Delivery |
|
(2) OEM |
|
|
(3) Buyer Label accepted |
|
|
(4) Follow up and maintenance |
|
|
Payment Term |
TT or L/C or Western Union |
|
Port |
Shanghai/Shenzhen |
Description:

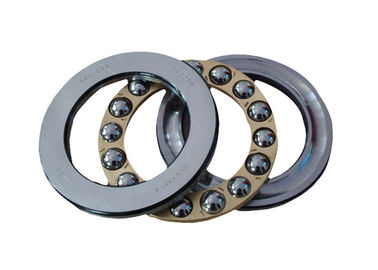

Thrust ball bearing (51220 51220M 51220E )
Thrust ball bearing consists of two precision chrome steel washers (ring) and a ball complement spaced by bronze retainer. They can be supplied with or without radius ball grooves in the rings. Thrust bearings are used under purely axial loads. Thrust ball bearings can handle loads in the axial direction only. Bearing rings mounted on the shaft are called shaft washers, and those mounted in the housing are called housing washers. Both washers contain raceways for the balls. Thrust ball bearings are available as both single and bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of balls. This center washer is located in the axial direction by a shaft shoulder and sleeve. Care must be taken in handling to prevent damage to the separable rings and ball assemblies.
Applications:
Automotive Steering; Fluid control valve; Machine table
Pictures:
Related Model:
|
Model No. |
d/mm |
D/mm |
H/mm |
Weight / Kg |
|
51200 |
10 |
26 |
11 |
0.0293 |
|
51201 |
12 |
28 |
11 |
0.0324 |
|
51202 |
15 |
32 |
12 |
0.0444 |
|
51203 |
17 |
35 |
12 |
0.0506 |
|
51204 |
20 |
40 |
14 |
0.0733 |
|
51205 |
25 |
47 |
15 |
0.109 |
|
51206 |
30 |
52 |
16 |
0.138 |
|
51207 |
35 |
62 |
18 |
0.22 |
|
51208 |
40 |
6 |
19 |
0.27 |
|
51209 |
45 |
73 |
20 |
0.32 |
|
51210 |
50 |
78 |
22 |
0.39 |
|
51211 |
55 |
90 |
25 |
0.619 |
|
51212 |
60 |
95 |
26 |
0.69 |
|
51213 |
65 |
100 |
27 |
0.75 |
|
51214 |
70 |
105 |
27 |
0.79 |
|
51215 |
75 |
110 |
27 |
0.815 |
|
51216 |
80 |
115 |
28 |
0.925 |
|
51217 |
85 |
125 |
31 |
1.3 |
|
51218 |
90 |
135 |
35 |
1.77 |
|
51220 |
100 |
150 |
38 |
2.4 |
|
51222 |
110 |
160 |
38 |
2.6 |
|
51224 |
120 |
170 |
39 |
2.9 |
|
51226 |
130 |
190 |
45 |
4.32 |
|
51228 |
140 |
200 |
46 |
4.6 |
|
51230 |
150 |
215 |
50 |
6.1 |
|
51232 |
160 |
225 |
51 |
6.55 |
