6203 ZZ 2RS Open Deep Groove Ball Bearing

China 6203 ZZ 2RS Open Deep Groove Ball Bearing supplier
6203 ZZ 2RS Open Deep Groove Ball Bearing supplier 6203 ZZ 2RS Open Deep Groove Ball Bearing supplier 6203 ZZ 2RS Open Deep Groove Ball Bearing supplier

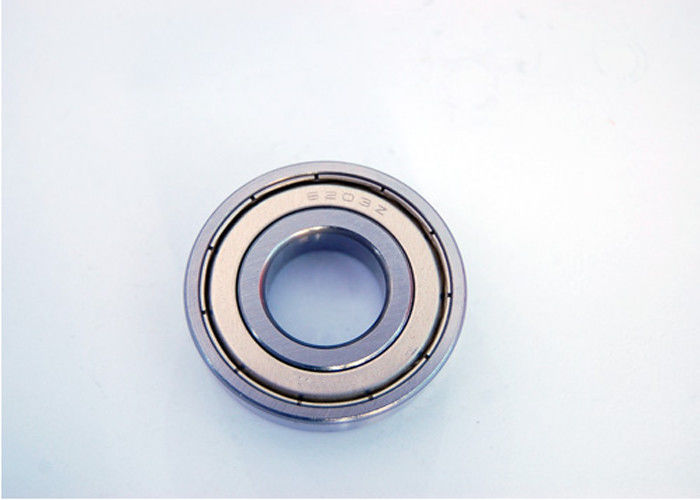

Large Image :  6203 ZZ 2RS Open Deep Groove Ball Bearing

Product Details:

Place of Origin: Japan
Brand Name: NTN
Certification: 14001
Model Number: 6203

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: Paypal T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Name: Deep Groove Ball Bearing Outside Diameter: 40mm
Bore Size: 17mm Application: Automobile, Motorbike, Electric Tools
Retainer: PTFE, Nylon, Peek Or Stainless Steel Precision Rating: P0 P2 P4 P5 P6
Material: Homr Steel / Bearing Steel / Carbon Number Of Row: Single Row

6203 bearing 6203 ZZ 2RS open deep groove ball bearing



Pecifications:

Name

6203 bearing 6203 ZZ 2RS open deep groove ball bearing

Model

6203

Material

Carburizing steel/ chorme steel/ bearing steel/

stainless steel/ carbon steel/ ceramic/ plastic...

Bore size(mm)

17

Outer diameter(mm)

40

Precision Grade

P0 P2 P4 P5 P6

Seal type

open

Inner clearance standards

C2, C0, C3, C4, C5

Application

Automobile,Motorbike, Electric tools, Small appliances ,Textile machine,

Printing machine, Fitness sports equipment,Medical device,

Printer,Automatictellermachine,Modelairplane etc.

Packaging

1. Rolling Packing + Plastic Bag + Paper carton + Poly Wooden Pallet
2.Carton+ wrapped by oil paper+water-proof belt+wooden pallets or

 wooden cases of free fumigation
3.According to your requirement.

Delivery time

7-15 days according to your order quantity

Payment Term

A:100% TT
B: 30% T/T in advance .70% against copy of B/L
C.30% T/T in advance .70% against L/C at sight
D.Western union

Product category

Deep groove ball bearings, self-aligning ball bearings, cylindrical roller bearings,

spherical roller bearing,angular contact ball bearings, tapered roller bearings,

thrust ball bearings, thrust roller bearings, needle roller bearings, etc.



Deep groove ball bearing  are the most widely used bearing type, especially in electricmotors. These non-separable bearings are suitable for high speeds. The deep uninterrupted Deep groove ball bearing  are the most common type and are used in a wide variety of applications.  Not only are they capable of supporting radial loads but also moderate axial loads in either direction.  Due to their low torque, they are suitable for applications where high speed and low power loss is required. They are easy to mount and suitable for many different configurations.


Deep groove ball bearing  are the most widely used bearing type, especially in electric motors. These non-separable bearings are suitable for high speeds. The deep uninterrupted raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Bearings with a bore diameter d ≤ 45 mm are most suitable for electric motors in the power range of 0,15 up to 15 kW as well as power tools and high-speed drives.


Deep Groove ball bearing  are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operation at very high speed or for large diameter bearings.









Applications:

(1) agricultural machinery, tractors, planter, harvesting machinery and so on.

(2) the heavy mining machinery, metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial and mining vehicles, cement equipment, etc.

(3) engineering machinery forklift, shoveling transport machinery, compaction machinery, concrete machinery, etc.

(4) petrochemical general machinery, petroleum machinery, oil machinery, chemical machinery, pump, blower, valves, gas compressor, refrigeration and air conditioning machinery, paper machinery, printing machinery, plastic processing machinery, pharmaceutical machinery, etc.

(5) the electrical machinery, power machinery, transformers, motors, high and low pressure switch, wire and cable, battery, electric welding machine, household appliances, etc.

(6) machine tools, metal cutting machine tools, forging machinery, casting machinery, woodworking machinery, etc.

(7) car, truck, road buses, cars, modified cars, motorcycles, etc.

(8) instruments: automation instrument, electrical instrumentation, optical instruments, composition analyzer, automotive instrumentation, dianliao equipment, electronic equipment, cameras, etc. Based machinery

(9) bearings, hydraulic parts, seals, powder metallurgy products, standard fasteners, industrial chain, gear, mold, etc.

(10) packaging machinery, packaging machine, packing machine, conveyor, etc.

(11) environmental protection machinery, equipment, equipment for the control of air pollution prevention and control of water pollution, solid waste treatment equipment such as mill professional special bearing, gear box, reducer special bearing.





Competitive Advantage:

1. able to carry high loads

2. with carbon steel ball bearing

3. with a high load-bearing capacity

4. more quietly than metal roller bearings

5. low noise, stable performance and durable

6. able to work in sub-zero temperatures and have low rolling resistance

7. suitable for countless applications: sliding doors, windows and other furnitures

6203 ZZ 2RS Open Deep Groove Ball Bearing

6203 ZZ 2RS Open Deep Groove Ball Bearing
