PN10 bar PP-H plastic flange ball valve,1/2" to 12” DIN,ANSI,JIS flange connection

China PN10 bar PP-H plastic flange ball valve,1/2" to 12” DIN,ANSI,JIS flange connection supplier

Large Image :  PN10 bar PP-H plastic flange ball valve,1/2" to 12” DIN,ANSI,JIS flange connection

Product Details:

Place of Origin: China
Brand Name: DINAI
Certification: ISO9001:2008, ISO14004
Model Number: Q41X-10S

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: $8-80
Packaging Details: wooden case
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description

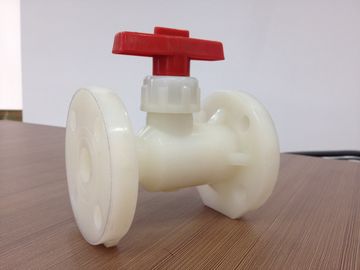

PN10 bar PP-H plastic flange ball valve,1/2" to 12” DIN,ANSI,JIS flange connection

Plastic flange ball valve application for the corrosion medium piping. The excellent corrosion resist property extend the working life, it has the smallest fluid resistance among the valves, rotating flexible, easy to handle, less leaking point, high strength, very easy assemble, install and fix.

PP-H (Beta-PP BE60-7032) is a HMW and low melt flow rate HOPP, by β modification, it has delicate crystal structure, which make it excellent impact strength at low temperature, it also improve the  hydrolic pressure, corrosion resist property, working temperature, and lower the expansion coefficient

FEATURES
• Sizes from 1/2” to 12”.
• All PP-GF body.
• PTFE seat.
• working temperature from 0℃ to 95℃.
• working pressure PN10 bar.
• Minimum flow resistance.
• one piece body, less leaking point

APPLICATION AREA

• acid pickling piping line
• electroplating liquid carrying.
• pharmaceutical factory acid and carrying.
• oil and gas industrial.
• textile mill,Leather Factory acid piping line.
• mining plant, metallurgy plant, fertilizer plant waste liquid piping line.
• semiconductor water treatment piping line.
• waste water treatment piping line
• food industrial salt water piping line
• chlorine plant

PN10 bar PP-H plastic flange ball valve,1/2" to 12” DIN,ANSI,JIS flange connection
