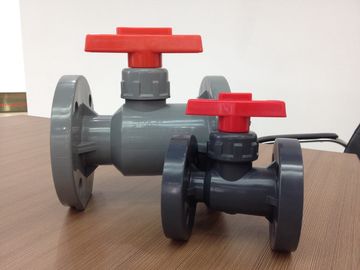

PN1.6 Mpa low pressure PP-H plastic true union ball valve,1/2" to 12” DIN,ANSI,JIS double union connection
Plastic true union ball valve application for the corrosion medium piping. The excellent corrosion resist property extend the working life, it has the smallest fluid resistance among the valves, rotating flexible, easy to handle, less leaking point, high strength, very easy assemble, install and fix.
PP-H (Beta-PP BE60-7032) is a HMW and low melt flow rate HOPP, by β modification, it has delicate crystal structure, which make it excellent impact strength at low temperature, it also improve the hydrolic pressure, corrosion resist property, working temperature, and lower the expansion coefficient
• Sizes from 1/2” to 4”.
• All PP-H body.
• PTFE seat.
• working temperature from -14℃ to 95℃.
• working pressure PN16 bar.
• Minimum flow resistance.
• Horizontal and vertical installation.
• ANSI,JIS,DIN double union connection, easy to install and fix
• acid pickling piping line
• electroplating liquid carrying.
• pharmaceutical factory acid and carrying.
• oil and gas industrial.
• textile mill,Leather Factory acid piping line.
• mining plant, metallurgy plant, fertilizer plant waste liquid piping line.
• semiconductor water treatment piping line.
• waste water treatment piping line
• food industrial salt water piping line
• chlorine plant
