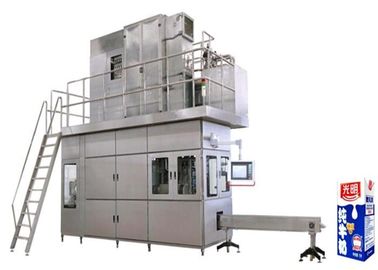

High Speed Beverage Filling Machine , Aseptic Brick Carton Juice Filling Machine

Large Image : High Speed Beverage Filling Machine , Aseptic Brick Carton Juice Filling Machine

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Joylong
Certification:	ISO
Model Number:	JB-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiation
Packaging Details:	all equipments and machines packed in worthy of sea shipping
Delivery Time:	in 90 days upon receipt of advance payments
Payment Terms:	30% of total amount paid by T/T in advance and the balance paid by T/T or L/C at sight
Supply Ability:	10set/Month

Contact Now

Detailed Product Description

Volume:	125-350ml 500-1000ml	Material:	PE/PAPER/PE/AL/PE/PE Six Layer Coiling Block Composite Material
Capacity:	2000BPH-8000BPH	Shelf Life:	One Year
Warranty:	One Year	Installation:	Turn Key Solution
High Light:	beverage filling machine , beverage filling equipment

High Speed Beverage Filling Machine , Aseptic Brick Carton Juice Filling Machine

Main Feature

The main features are: disposable auto-complete feed, sterilization, box making, filling, forming, sealing action, the molding of composite materials using hydrogen peroxide spray and high-intensity ultraviolet radiation and sterile hot air drying, packaging, materials completion of the aseptic chamber of the filling and after the filling of the seal are in a positive pressure conditions, thus ensuring a sterile packaging materials and materials to be packaged through a juice beverage after the UHT sterilization at room temperature shelf life of long up to one year. In addition, the aircraft PLC optical correction, frequency control, pneumatic solenoid valve, vacuum systems, liquid level control, smart electronic thermostat adjustment, automatic fault alarm system and sterile room, etc. Germany, Japan and other countries of the famous brand , the whole machine is used stainless steel, beautiful appearance, convenient operation.

Main Technical Parameters

Production speed	The net content is 1,000 milliliter, 1,500-2,000 bags per hour

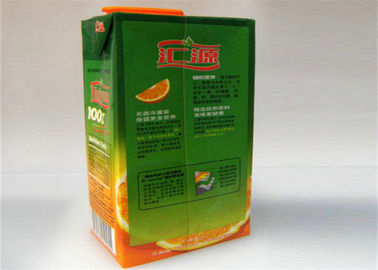

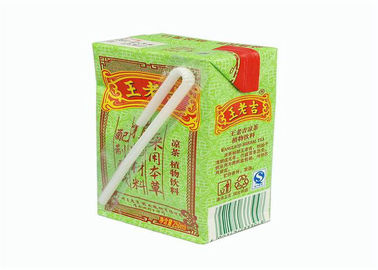

Shapes of Packing	Brick, slender
Packing material	PE/PAPER/PE/AL/PE/PE six layer coiling block composite material
Utilization power	24 Kw (power: 4 Kw, electrical heating: 20 Kw)
Utilization voltage	220V/380V
Frequency of power utilization	50Hz/60Hz
Compressed air	0.4-0-6Mpa, 1.0M³/min
Technological process	Formfeed-code-sterilization-filling-forming
Mode of operation	PLC control, human-computer interface operate
Shelf life of product	Under the indoor temperature of 25-30℃, the guarantee period of the common drink is 12 months and 6 months for dairy.
Boundary dimension	L×W×H=6,000×1,600×4,000mm

Equipment Configuration

No.	Name	Configuration		Quantity		Brand
1. Machinery molding
101	Lower traction part	Worm and gear reducer NARV50-15 is used for main drawing roller which is equipped with 1 set of three-phase asynchronous motor of 0.37 KW; one Japan SMC cylinder MA40x35 is used for traction rubber roller.	1 set			Speed reducer of Japan Inovance
102	Locating mechanism	One set of thin cylinder SDA40x15 of Japan SMC is used for brake.	1 set
103	Film mulching mechanism	One set of air cylinder MA16x30 of Japan SMC under rubber roller of pressing PP film.	1 set
104	Putting model mechanism	One group of guide rails of Germany Igus; 2 connecting-film cylinders SDA12x12 of Japan SMC; the heater of connecting film uses PTC ceramic heater band.	1 set
105	Guide wheel mechanism	HRC55-60 pin axle of Japan, all are stainless steel hard axles, and heat treatment is for surface hardness; pin axle uses Germany Igus.	1 set
106	Rack of horizontal sealing	The rack material is aviation aluminum 7075.	1 set
107	Clamping jaw of horizontal sealing	The engineering plastics of American Dupont; high-end heat treatment is made for the stainless steed parts of key places; bearing of Japan NSK; counterpoint mechanism motor of 0.75 KW of Japan Inovance; electrode part of horizontal sealing uses American C17200 beryllium bronze;	1 set
108	Clamping jaw motor of horizontal sealing	Servo motor of 4.4 KW of Japan Inovance	1 set
109	Station chain mechanism	All 26 pieces of chain boards are fine finished, all materials are 7075 aviation aluminum, and oxidative treatment are made for surface.	1 set
110	Output mechanism	The reducer of bevel gear of 1:1 is APEX brand of Taiwan. Cam structure is used for packaging, and swivel plate is outside, eight swing arm moving packages for one circle, and the package moving is automatic and flexible.	1 set
111	Motor of output mechanism	Servo motor of 4.4 KW of Japan Inovance	1 set
112	Upper traction mechanism	The bearing of traction case uses the stainless bearing of Sweden SKF, which is heat resistant, corrosion resistant and acid-base resistant. Worm and gear reducer NARV50-15 is used for main drawing roller which is equipped with 1 set of three-phase asynchronous motor of 0.37 KW; one Japan SMC cylinder MA40x35 is used for traction rubber roller.	1 set			Speed reducer of Japan Inovance
113	High-frequency heater of horizontal sealing	2 KW, RDRF-05, high-frequency electro-magnetic induction	1 piece			Italy CEIA
114	High-frequency heater of longitudinal sealing	2 KW, RDRF-05, high-frequency electro-magnetic induction	1 piece			Italy CEIA
115	High-frequency heater of film mulching	2 KW, RDRF-05, high-frequency electro-magnetic induction	1 piece			Italy CEIA
116	Automatic lubrication oiling machine	30 W, Taiwan TUNGTAY	1 set
2. Aseptic system
201	Hot air heater	15KW		1 piece	Japan SAKAGUCHI
202	Hydrogen peroxide groove mechanism	The whole hydrogen peroxide groove use the 316 material, inside roller bearing is Japan ceramic bearing.		1 set
203	Hydrogen peroxide pump	0.37KW, 300L/H		1 set	GRUNDFOS
204	Hydrogen peroxide heater	2KW		3 pieces	Japan SAKAGUCHI
205	Water-cycling vacuum pump	4KW		1 set	German BECKER
206	Pneumatic two position three -way reversing valve	φ51.3		2 pieces	APV
207	Plate heat exchanger	BRF05-160-316L		1 set	Shanghai NANHUA
208	Temperature sensor	0~200℃/450℃		5 5 pieces	OMRON
209	Spherical valve, butterfly bamper, angle seat valve			Several	Shanghai Yuanan
210	Pressure regulating valve, relief valve			1 piece for each	APV
211	Constant flow valve			2 pieces	APV
212	Sterile proportional adjusting valve			1 piece	German BURKERT
3. Electric configuration
301	Air circuit breaker	C65N-D			Schneider
302	Alternating current contactor	LC1-D****N			Schneider
303	Intermediate relay	MY2NJ			OMRON
304	Transducer	ATV303H			Schneider
305	Servo motor/servo drivers	LSMH/LS600P			Japan Inovance
306	Programmable controller PLC	S7-200CN			Siemens
307	Human-computer interface	6AV66480BE113AX0			Siemens
308	Temperature controller	PXR9NEH			Japan fuji
309	Pressure regulating module	STY**A-III			Fushen science and technology
310	Proximity switch	LESFDP0			LANBAO
311	Magnet switch	D-AS3			Japan
312	Color mark sensor	KT5W-2P2116D			German SICK
313	Absolute value encoder	TRD-NA			Japan
314	Switching power supply				MEAN WELL
