Special fire signal resilient seated gate butterfly valve pressure 1.0 - 2.5MPa

China Special fire signal resilient seated gate butterfly valve pressure 1.0 - 2.5MPa supplier

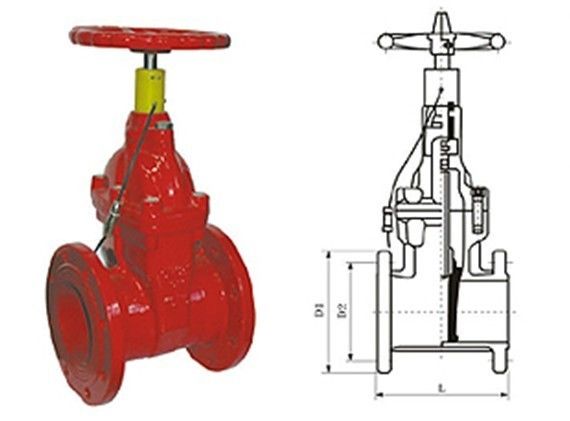

Large Image :  Special fire signal resilient seated gate butterfly valve pressure 1.0 - 2.5MPa

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: gate valve

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: T/T
Supply Ability: 1000pcs / month
Contact Now
Detailed Product Description

Special fire signal resilient seated gate butterfly valve pressure 1.0 - 2.5MPa for automatic spraying water pipeline in fire protection system



Signal gate valve and signal butterfly valve are used in automatic spraying water pipeline in fire protection system to monitor the water supplying pipeline and can indicate the valve's opening in a long distance.Rising stem gate valve and opening indicator gate valve are often used in fire protection system, and if the installation position is high to the ground, rising stem gate valve is used and can show the valve's opening clearly and if the installation position is low, opening indicator gate valve is used.



Material



No.

part

material

1

Transmission cap

ductile cast iron, cast steel

2

Handwheel

Ductile iron

3

Dust proof gasket

Plastic

4

Gasket

Buna-N rubber or EPDM

5

Thrust bearing

Gunmetals

6

Cover

Grey cast iron, ductile cast iron, cast steel

7

Bolt

Carbon steel or stainless steel

8

Body

Grey cast iron, ductile cast iron, cast steel

9

Copper nut

Gunmetals

10

Stem

Stainless steel

11

Disc

Ductile cast iron packed with rubber or EPDM outside



Main technic-al parameters


Nominal pressure: 1.0-2.5MPaWorking temp.:0-120

Flanged end:GB/T17241.6 GB9113, ASME 16.5 etc..
Nominal diameter: 50-400mmService:water, oils, gas etc..Inspection and test:GB 13927 API 598


Main dimensions unit:mm



DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

178

190

203

229

254

267

292

330

356

381

406

432

457

508

H(full open)

732

773

820

870

915

1003

1110

1263

1360

1550

1610

1900

1938

2120
