Home ProductsPlastic Butterfly Valve

Wafer type thermoplastic butterfly valve manual and gear handle, 1.0Mpa,1”~24”, UPVC,CPVC,PVDF,PP,PPH fabricated

Certification
Good quality Dispensing Robot for sales
Good quality Dispensing Robot for sales
Customer Reviews
Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Very appreciate for your professional service & higher standard quality control,very happy to know you.

—— Mr Johnifere

I'm Online Chat Now

Wafer type thermoplastic butterfly valve manual and gear handle, 1.0Mpa,1”~24”, UPVC,CPVC,PVDF,PP,PPH fabricated

China Wafer type thermoplastic butterfly valve manual and gear handle, 1.0Mpa,1”~24”, UPVC,CPVC,PVDF,PP,PPH fabricated supplier

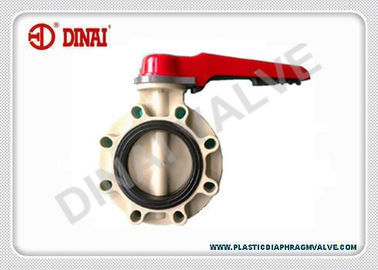

Large Image :  Wafer type thermoplastic butterfly valve manual and gear handle, 1.0Mpa,1”~24”, UPVC,CPVC,PVDF,PP,PPH fabricated

Product Details:

Place of Origin: China
Brand Name: DINAI
Certification: ISO
Model Number: D371X-10S

Payment & Shipping Terms:

Minimum Order Quantity: 5 Sets
Price: $51~$1085
Packaging Details: Wooden Case
Delivery Time: 7-15 Days
Payment Terms: T/T; L/C
Supply Ability: 500~1000 Sets/Month
Contact Now
Detailed Product Description

FEATURES
• Sizes from 1” to 24”.
• PP-GF body, CPVC,UPVC,PVDF,RPP,PPH disc
• EPDM/FPM seat.
• working temperature from -10℃ to 95℃.
• working pressure PN10 bar.
• Minimum flow resistance.
• ANSI#16.5,JIS10K,DIN wafer connection.

APPLICATION AREA

• acid pickling piping line
• electroplating liquid carrying.
• pharmaceutical factory acid and carrying.
• oil and gas industrial.
• textile mill,Leather Factory acid piping line.
• mining plant, metallurgy plant, fertilizer plant waste liquid piping line.
• semiconductor water treatment piping line.
• waste water treatment piping line
• food industrial salt water piping line
• chlorine plant



Wafer type thermoplastic butterfly valve manual and gear handle, 1.0Mpa,1”~24”, UPVC,CPVC,PVDF,PP,PPH fabricated NO. PART NAME QTY MATERIAL
Cap PP
Bolt Stainless Steel
O-ring EPDM FPM
locking Plate PP
Screw Stainless Steel
Screw Stainless Steel
O-ring EPDM FPM
Disc UPVC CPVC PVDF PP
Stem SS304
10  Seat EPDM FPM
11  Body UPVC CPVC PVDF PP
12  Hand Lever PP
13  Spring Steel
14  Pin PP
15  Handle ABS
Norminal Size D1 d L H1 H2 H3 A n Φh Weight/kg
DN(Inch) DIN ANSI JIS UPVC CPVC PVDF PP
40(1-1/2") 110  99  105  45  39  75  100  56  220  18  1.3  1.4  1.5  1.2
50(2") 125  120  120  56  42  83  110  56  220  18  1.4  1.5  1.6  1.3
65(2-1/2") 145  140  140  69  46  93  120  56  220  18  1.5  1.6  1.7  1.4
80(3") 160  152  150  77  46  106  135  56  250  18  1.9  2.0  2.1  1.8
100(4") 180  190  175  102  56  119  150  56  250  18  2.3  2.4  2.5  2.1
125(5") 210  216  210  129  66  132  168  69  320  18  4.1  4.2  4.3  3.9
150(6") 240  240  240  150  71  143  183  69  320  22  4.8  5.0  5.2  4.4
200(8") 295  298  290  195  87  170  214  69  400  22  8.0  8.4  9.0

7.3



Wafer type thermoplastic butterfly valve manual and gear handle, 1.0Mpa,1”~24”, UPVC,CPVC,PVDF,PP,PPH fabricated NO. PART NAME QTY MATERIAL
Hand Wheel Cast Iron
Gear-Box Cast Iron Steel
Bolt and Nut Steel
Stem Seal EPDM FPM
Seat EPDM FPM
Stem Stainless Steel
Disc UPVC CPVC PVDF PP
Body PVDF PP
Norminal Size D1 D1 d A1 A2 L H1 H2 n Φh Weight/kg
DN(Inch) DIN ANSI JIS UPVC CPVC PVDF PP
125(5") 210  216  210  250  131  190  100  70  125  256  18  7.5  7.8  8.0  7.0
150(6") 240  240  240  285  153  190  100  74  143  269  22  8.0  8.4  8.5  7.5
200(8") 295  298  290  340  204  245  110  87  170  303  22  16.0  16.8  18.0  15.0
250(10") 350  362  355  395  255  245  110  114  198  333  12  22  20.0  21.5  23.0  18.5
300(12") 400    400  445  307  245  125  114  223  363  12  22  28.0  30.0  32.0  26.0
350(14") 460      505  358  210  125  127  253  393  16  22  32.0  34.5  37.0  30.0
400(16") 515      580  389  210  130  140  290  458  16  26  42.0  45.0  48.0  39.0
450(18") 565    565  615  446  280  130  152  308  478  20  26  60.0  64.0  68.0  56.0
500(20") 620    620  670  494  280  150  152  235  508  20  26  85  90  95  80
600(24") 725     780 590 280 150 178 390 573 20 30 120 125 130 114
