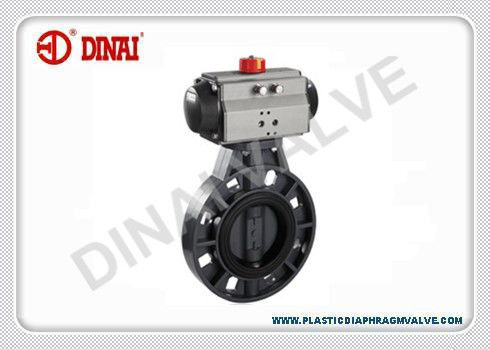

PVDF Plastic Butterfly Valve Pneumatic Actuator Operation PN1.0Mpa JIS / DIN / ANSI

China PVDF Plastic Butterfly Valve Pneumatic Actuator Operation PN1.0Mpa JIS / DIN / ANSI supplier

Large Image :  PVDF Plastic Butterfly Valve Pneumatic Actuator Operation PN1.0Mpa JIS / DIN / ANSI

Product Details:

Place of Origin: China
Brand Name: DINAI
Certification: ISO
Model Number: D671X-10F

Payment & Shipping Terms:

Minimum Order Quantity: 10 Sets
Price: $200~$3800
Packaging Details: Wooden Case
Delivery Time: 7-15 Days
Payment Terms: T/T; L/C
Supply Ability: 500~2000 Sets/Month
Contact Now
Detailed Product Description

PVDF Plastic Butterfly Valve Pneumatic Actuator Operation PN1.0Mpa JIS / DIN / ANSI



Description:

PVDF butterfly valve is made by PVDF material,  the material of body and disc is pvdf ,  stem is 304 stainless steel,  seat

material is EPDM or FRM. Size range from 1”(D32mm) to 24”(D630mm); the valve can be operated by hand lever,  worm-gear,  electrical actuator and pneumatic actuator.

Compare with PP butterfly valve,  the PVDF butterfly valve has better mechanical performance,  the thermal property.



Applications:

PVDF butterfly valve is widely used for water supply system,  electrical system,  construction,  sewer system,  brine system,

natural gas system,  chemical plant,  paper plant,  electro-plating plant,  brewing plant,  mining,  agriculture,  waste water treatment,  grouting for coil mines,  etc.



Specifications:

Size

D1

D2

D3

L1

L

H1

H2

n-Φ

Kg/set

1”(D32mm)

35

85

135

200

35

90

70

4-14

4.2

1-1/4”(D40mm)

35

100

135

200

35

90

70

4-18

4.2

1-1/2”(D50mm)

47

110

150

200

39

100

70

4-18

4.2

2”(D63mm)

56

125

160

220

40

105

70

4-18

4.3

2-1/2”(D75mm)

71

145

185

220

46

105

70

4-18

4.4

3”(D90mm)

85

160

195

280

46

123

85

8-18

4.8

4”(D110mm)

105

180

215

280

54

123

85

8-18

5.1

5”(D140mm)

131

210

250

300

70

150

93

8-18

7

6”(D160mm)

153

240

285

300

74

176

93

8-22

7.5

8”(D225mm)

204

295

340

245

87

210

93

8-22

14

10”(D280mm)

255

350

395

245

114

240

93

12-22

17

12”(D315mm)

307

400

445

245

114

270

93

12-22

21

14”(D355mm)

358

460

505

210

127

300

93

16-22

26

16”(D400mm)

389

515

580

210

140

350

108

16-22

33

18”(D450mm)

446

565

615

280

152

370

108

20-26

50

20”(D500mm)

494

620

670

280

152

400

108

20-26

70

24”(D600mm)

590

725

780

280

178

465

108

20-30

100



PVDF butterfly valve specification

Operation

Pneumatic

Working pressure

1.0Mpa

Working pressure

-40℃~140℃

Standard

DIN/ANSI/JIS/BS

1

Actuator

Steel/aluminium alloy

2

Body

RPP/PVDF

3

Seat

EPDM/FPM

4

Stem

Stainless steel

5

Disc

PVDF



PVDF Plastic Butterfly Valve Pneumatic Actuator Operation PN1.0Mpa JIS / DIN / ANSI
