PVDF/PTFE plastic diaphragm valve, weir type, 1/2" to 10” DIN, ANSI#16.5, JIS10K flange connection, PN10

Certification
China China Adhesive Dispensing Machine Online Market certification
China China Adhesive Dispensing Machine Online Market certification
Customer Reviews
Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Very appreciate for your professional service & higher standard quality control,very happy to know you.

—— Mr Johnifere

I'm Online Chat Now

PVDF/PTFE plastic diaphragm valve, weir type, 1/2" to 10” DIN, ANSI#16.5, JIS10K flange connection, PN10

PVDF/PTFE plastic diaphragm valve, weir type, 1/2" to 10” DIN, ANSI#16.5, JIS10K flange connection, PN10
PVDF/PTFE plastic diaphragm valve, weir type, 1/2" to 10” DIN, ANSI#16.5, JIS10K flange connection, PN10

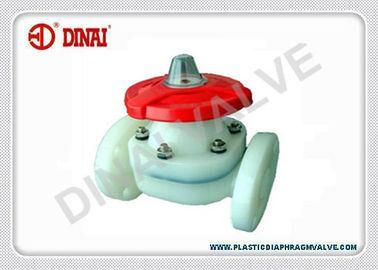

Large Image :  PVDF/PTFE plastic diaphragm valve, weir type, 1/2" to 10” DIN, ANSI#16.5, JIS10K flange connection, PN10

Product Details:
Place of Origin: China
Brand Name: DINAI
Certification: ISO9001:2008
Model Number: DNG41F-10F
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Price: $500~$3000
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T
Supply Ability: 1000~3000 Sets/Month
Detailed Product Description
High Light:

epdm diaphragm valve

,

industrial diaphragm valves

Plastic Pressure Relief PVC Diaphragm Valve Actuator , Stainless Steel





Diaphragm valves offer many combinations of body materials and elastomeric diaphragm materials. The valve design is abrasion-resistant and non-clogging. When the diaphragm, which is connected to the stem of the valve by a compressor, is pulled away from the bottom of the valve body or weir, the path of the fluid has a smooth, streamlined flow. Slurries at low pressure that would normally clog most other valve designs easily pass through a diaphragm valve. The valve has a top-entry design, allowing in-line maintenance; it is suitable for throttling and on/off service in applications ranging from water treatment to chemical abrasion processes. Diaphragm valves are operated manually, electrically, or pneumatically.

PVDF is short for Poly Vinylidene Fluoride, it has excellent chemical stability, excellent chemical resistance, and excellent thermal stability. It can be long operated under the temperature from -62℃ to 150℃.Furthermore, it’s one of the perfect insulation materials with a high dielectric constant, which can resist all mediums like salt acid, alkaline, arene, halogen and so on except for hydrochloric acid and strong solvent. It also enjoys the merits like no flame, breaking resistance, wear resistance and good self lubricating property.





Features:


• Sizes from 1/2” to 10”.
• PVDF body, PP-GF/PVDF bonnet
• PTFE diaphragm, EPDM cushion .
• working temperature from -30℃ to 140℃.
• working pressure PN10 bar.
• weir type.
• ANSI,JIS,DIN flange connection

Brand: DINAI VALVE





Application Area:



• acid pickling piping line
• electroplating liquid carrying.
• pharmaceutical factory acid and carrying.
• oil and gas industrial.
• textile mill,Leather Factory acid piping line.
• mining plant, metallurgy plant, fertilizer plant waste liquid piping line.
• semiconductor water treatment piping line.
• waste water treatment piping line
• food industrial salt water piping line
• chlorine plant



PVDF/PTFE plastic diaphragm valve, weir type, 1/2" to 10” DIN, ANSI#16.5, JIS10K flange connection, PN10 0 NO. PART NAME QTY MATERIAL
Set Nut Steel
Stem Steel
Gasket PP
Pin Steel
Compressor Cast Iron/Nylon
Screw Steel
Gasket Steel
Diaphragm PTFE+EPDM
Body UPVC CPVC PVDF PP
10  Cover PC
11  Cap PP
12  Hand Wheel ABS
13  Grease Nipple Copper
14  Bonnet UPVC CPVC PVDF PP
15  Bolt and Nut Steel
Norminal Size D1 D L H T n ΦD1 Weight/kg
DN(Inch) DIN ANSI JIS UPVC CPVC PVDF PP
15(1/2") 65  60  70  95  125  125  15  14  1.0  1.0  1.2  0.8
20(3/4") 75  70  75  105  135  130  16  14  1.3  1.3  1.6  0.9
25(1") 85  80  90  115  145  145  16  14  1.5  1.6  1.8  1.0
32(1-1/4") 100  89  100  135  160  170  16  18  2.0  2.1  2.4  1.3
40(1-1/2") 110  99  105  145  180  190  18  18  2.5  2.7  3.0  1.8
50(2") 125  120  120  160  210  215  25  18  3.2  3.4  3.9  2.5
65(2-1/2") 145  140  140  180  250  280  25  18  6.2  6.4  7.8  5.0
80(3") 160  152  150  195  300  300  30  18  7.5  7.8  8.9  6.1
100(4") 180  190  175  215  350  340  30  18  12.6  13.0  15.0  9.7
125(5") 210  216  210  245  400  420  30  18  17.6  18.0  21.0  13.5
150(6") 240  240  240  280  460  480  30  23  31.0  32.0  37.0  25.0
200(8") 295  298  290  335  570  625  35  23  47.0  49.0  56.0  36.5
250(10") 350  362  355  395  680  776  35  12  23  60.0  63.0  96.0  50.0
