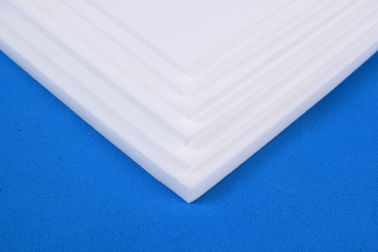

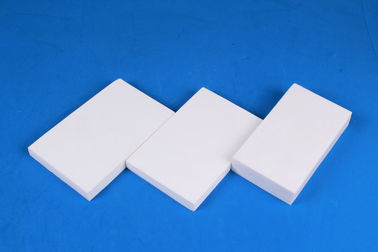

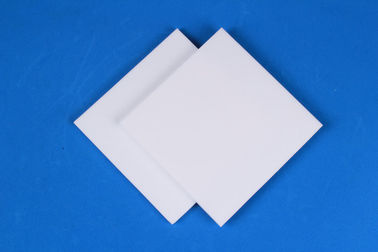

Pure White Molded PTFE Teflon Sheet For Medical Equipment , Lubricant Material

Pure White Molded PTFE Teflon Sheet For Medical Equipment , Lubricant Material
Pure White Molded PTFE Teflon Sheet For Medical Equipment , Lubricant Material

Large Image :  Pure White Molded PTFE Teflon Sheet For Medical Equipment , Lubricant Material

Product Details:
Place of Origin: China
Brand Name: B&C
Certification: SGS,UL, CE,IOS9001,ISO14001
Model Number: PTFE sheet-002
Size: Width&length 150mm-2000mm or as your requirements
Thickness: 1-50mm
Payment & Shipping Terms:
Minimum Order Quantity: 50KGS
Price: Negotiable
Packaging Details: Ply-Wooden Cases
Delivery Time: 10-20days
Payment Terms: T/T, LC
Supply Ability: 110Tons/month
Detailed Product Description
Apparent Density: 2.1 - 2.3 G/cm³ Applications: Medical Equipment
Color: Pure White Product Name: PTFE Sheet
Thickness: 100mm|300mm|1000mm|1220mm|2000mm Width: 100mm|300mm|1000mm|1220mm
High Light:

PTFE Sheet

,

Teflon PTFE Sheet



White PTFE Sheet Recycled , Poly Tetra Fluoro Ethylene





Quick Detail:



seal liner and lubricant material in kinds of medium, especially corrosive situation;

dielectric material in kinds of frequency;

Virgin and recycled materials available

Made of  molding power

Temperature : -180--260°c

Stretch strength : >15Mpa

Break elongation rate :200%





Description:



Molded PTFE  sheet is manufactured by molding process with PTFE granular resin and sintering.

It has a wide range of practicable temperature from -180C~+260C and a wax-like surface to which

anything hardly sticks. Molded  sheet has the lowest coefficient of friction of all known solid materials.

Molded  Blocks has the best electrical properties of all plastic.It is very suitable for seals,linings,

diaphragm,scraper guide and bearing pad for bridge.





Applications:



1.Seals and gaskets

2. Valve and fitting components

3. Pump parts

4. Manifolds

5. Semiconductor equipment

6. Scientific equipment

7. Medical equipment

8. Chemical resistant tubing

9. Capacitor dielectric

10.wire isolation

11.electrical instrument isolation





Specifications:



Project Name

Unit

Result

Apparent Density

g/cm3

2.1 ~ 2.3

Tensile Strength

Mpa

≥ 14.0

Ultimate Elongation

%

≥ 150

Thick( mm )

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16,

18, 19, 20, 22, 24, 25, 26, 28, 30, 35, 40, 50

Width ( mm )

100mm, 300mm, 1000mm, 1220mm

length ( mm )

100mm, 300mm, 1000mm, 1220mm, 2000mm



STOCK DIMENSION:



1220mm x 1220mm

1000mm x 1000mm

Thickness ( mm )

Weight

Thickness ( mm )

Weight

1.0mm

3.42kg

1.0mm

2.30kg

2.0mm

6.85kg

2.0mm

4.60kg

2.5mm

8.56kg

2.5mm

5.75kg

3.0mm

10.27kg

3.0mm

6.90kg

4.0mm

13.69kg

4.0mm

9.20kg





Remarks:



Molded PTFE  sheets are available in other sizes and thickness according to customer's specific

requirements.





Competitive Advantage:



1.Excellent Chemical property

2.Virgin and recycled materials available

3.Any sizes available

4.Fast Usually
