400GSM High Strength split film geotextile filter fabric Polypropylene

400GSM High Strength split film geotextile filter fabric Polypropylene
400GSM High Strength split film geotextile filter fabric Polypropylene 400GSM High Strength split film geotextile filter fabric Polypropylene 400GSM High Strength split film geotextile filter fabric Polypropylene 400GSM High Strength split film geotextile filter fabric Polypropylene

Large Image :  400GSM High Strength split film geotextile filter fabric Polypropylene

Product Details:
Place of Origin: China
Brand Name: HongHuan
Certification: ISO9001
Model Number: SWG40
Payment & Shipping Terms:
Minimum Order Quantity: 5,000/m^2
Packaging Details: PVC or PP Fabric Rolls
Delivery Time: 45 days
Payment Terms: T/T, LC
Supply Ability: 8,000,000m^2/Month
Material: PE
Detailed Product Description
Color: Black Feature: High Tensile Strength
Function: Reinforcement Geotextile Type: Woven Geotextile
Material: PP Product Name: Split Film Yarn Woven Geotextile
High Light:

geotextile filter fabric

,

geotextile separation layer



400GSM High Strength split film geotextile filter fabric Polypropylene





Product Description:



Split Film Woven Geotextile is a kind of cost-effective woven geotextile made from Polypropylene slit film yarns. This geotextile is now mainly used for reinforcment and separation application . If you are building a road , constructing a parking lot, stabilizing material staging areas or repairing/installing  a gravel driveway, woven geotextile perform at a high level and save time and money. And in most cases, our woven geotextile offer an added advantage over any geogrid on separation function.





Specification Data Sheet :


PROPERTIES

TEST METHOD

UNIT

NOMINAL VALUE

 Mass Per Unit Area

ASTM D 5261

g/m2

400

 Tensile strength, MD

ASTM D 4595

kN/m

80

 Tensile strength, CD

ASTM D 4595

kN/m

80

 Elongation, MD

ASTM D 4595

%

25

 Elongation, CD

ASTM D 4595

%

25

 Apparent Opening Size

ASTM D 4751

mm

0.41

 Permittivity

ASTM D 4491

sec-1

NA

 Water Flow Rate

ASTM D 4491

l/min/m2

160

 Trapezoidal Tear Strength

ASTM D 4533

kN

0.72

 CBR Ejection Force

ASTM D 6241

kN

7.50

 UV Resistance

 (% retained after 500 hours)

ASTM D 4355

%

70

ROLL DIMENSIONS







Roll Width



m

5.85

Roll Length



m

70

Roll Weight



Kg

244





Product Function:



  • Embankments reinforcement
  • Earth reinforcement
  • Soft soil stabilization
  • Slop protection
  • Road contruction



Product Features:



  • Width Range From 3.81m to 8m
  • Low elongation
  • High strength
  • Resistance to the biological and chemical environments
  • Easy to install
  • Resistant to UV



Some Details Of Product:



           400GSM High Strength split film geotextile filter fabric Polypropylene 0

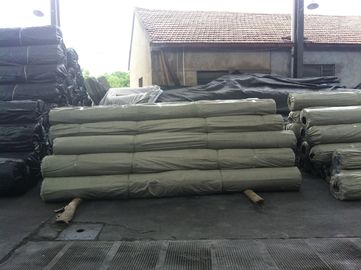

Product Package and Storage:



  • Split film woven geotextiles are supplied on 4' cardboard cores and wrapped in black polyethylene sheeting .
  • Geotextile can be folded to a suitable width if it's needed .
  • Tipically all materials are stored indoors to protect them from exposure to UV. But sometimes, the rolls can be also stored outdoors when packaged by woven geotextile .



  400GSM High Strength split film geotextile filter fabric Polypropylene 1    400GSM High Strength split film geotextile filter fabric Polypropylene 2     400GSM High Strength split film geotextile filter fabric Polypropylene 3
