Paste automatic magnetic separator for screen mesh filterable ceramics

China Paste automatic magnetic separator for screen mesh filterable ceramics supplier

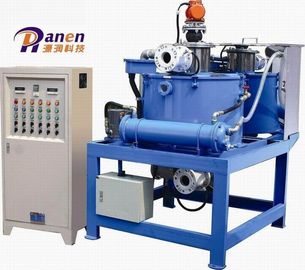

Large Image :  Paste automatic magnetic separator for screen mesh filterable ceramics

Product Details:

Place of Origin: shanghai
Brand Name: ranen
Certification: CE
Model Number: YRSC-15-ZD

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiate
Packaging Details: wood carton
Delivery Time: 35 work days
Supply Ability: 100 set per month
Contact Now
Detailed Product Description

Paste automatic magnetic separator for screen mesh filterable ceramics





Paste automatic magnetic separator





Product information:



YRSC-15-ZD paste automatic magnetic separator is suitable for screen mesh filterable ceramics for removing more than 20 mesh, chemical, electronics industries, such as slurry, glaze of ferromagnetic material.





Product Features:



1. Body's high pressure resistant test to Electromagnetic winding: undertake frequency of 50Hz. The Ac test voltage 2000V is without breakdown through 1 second, no flashover.

2. Body insulation resistance to electromagnetic winding: below 10MΩ.

3. Adopting 10# transformer oil as electromagnetic winding insulation oil . Oil temperature is up to 60

4. Conductive magnetic net adopt stainless steel conductive magnetic materials. Magnetic performance is 15% more than excitation magnetic field strength.

5. The machine body and raw material contacting parts are imported SUS304.

6. Adopting the safe and reliable circulation cooling system, greatly extend the service life of the machine, to ensure the machine in a long tine working state.

7. Distribution box installed automatic alarm device, to provide you with sound-light alarm function, can no need worry about removing iron effects due to machine faulty caused.

8. Fully automatic removing iron, deferrization slagging and cleaning characteristics, without manual operation, easy to clean, fast, save time and labour.

9. In the process of structure design and manufacturing, adopting a series of effective actions to make the machine greatlt extend service life.

10. The machine's electrical equipment can entirely guarantee personal safety, reliable, long service life, and convenient installation & maintenance.



Paste automatic magnetic separator for screen mesh filterable ceramics



Technical Parameters:



Content

Parameters

Input voltage

AC 380V/415V

Output voltage

DC 175~185V

Initial current

DC 54~ 60A

Thermal ballance current

DC 44A

Thermal temperature

65 ℃

Total power

8KW

Horizontal type vibrating motor

100kg ---1 set

Magnetic field strength

≧ 15000GS

Cooling mode

Outside water-cooled & hot oil circulation

Demagnetizing mode

Demagnetizing coil winding

Dealing capacity

20~25T/H( slurry) 15~20T/H glaze)

Weight

780KG
